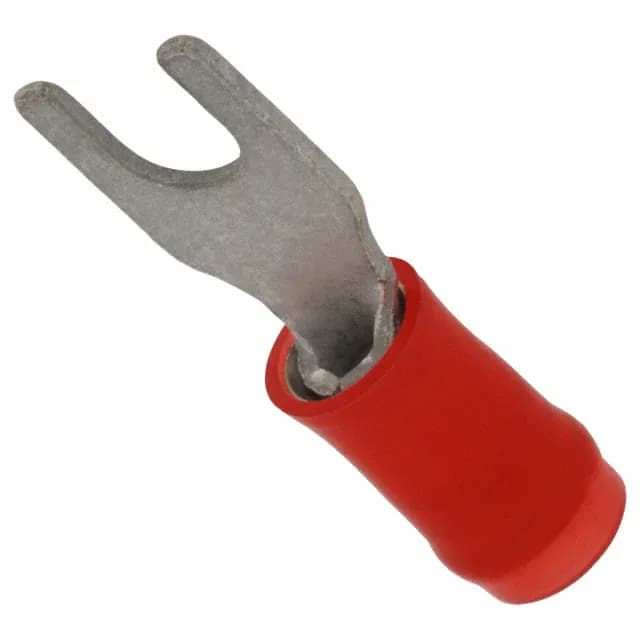

TE Connectivity AMP Connectors PIDG spade terminal, order code 34541, 16-22 AWG, #6 stud, tin-plated copper contact, insulated, serrated termination, crimp, free hanging, bulk.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.250\" (6.35mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
| Parameter | Value |
|---|---|
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.846\" (21.49mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
| Length - termination | 0.404\" (10.26mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.312\" (7.92mm) |
The 34541 is a PIDG-series spade terminal from TE Connectivity AMP Connectors, accepting 16-22 AWG wire and fitting a #6 stud. The tin-plated copper contact is insulated with a red polyamide sleeve and uses a serrated crimp barrel for wire grip.
The 34541 is RoHS compliant. No UL or IEC certification is listed in the available records.
