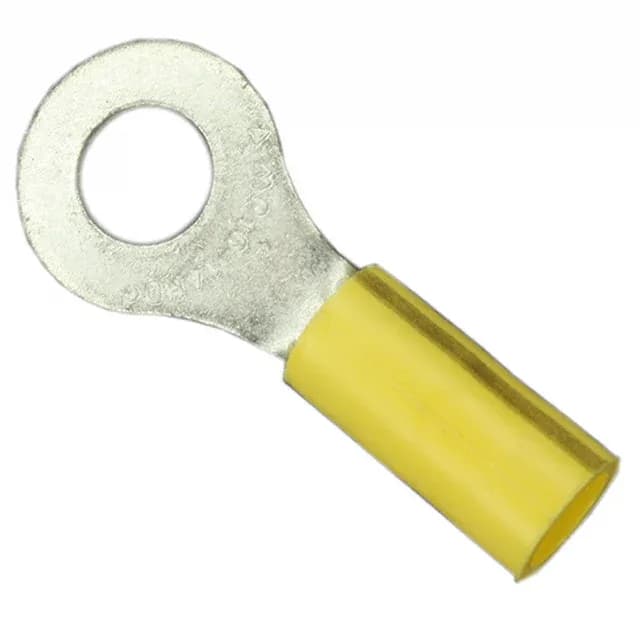

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 34824, 14-16 AWG, #1/4 stud, circular terminal type, tin-plated copper contact, PVC insulated, free hanging in-line, crimp termination.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Yellow, Black Stripe |
| Contact material | Copper |
| Width - outer edges | 0.531\" (13.49mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Heavy Duty, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.296\" (32.92mm) |
| Insulation diameter | 0.105\" ~ 0.200\" (2.67mm ~ 5.08mm) |
The 34824 is the 14-16 AWG member of TE's Plasti-Grip ring terminal line, terminated to a #1/4 stud. The tin-plated copper contact is crimped to the wire and the PVC insulation sleeve covers the barrel and part of the wire jacket.
The insulation is yellow with a black stripe.
The 34824 is RoHS3 compliant.
