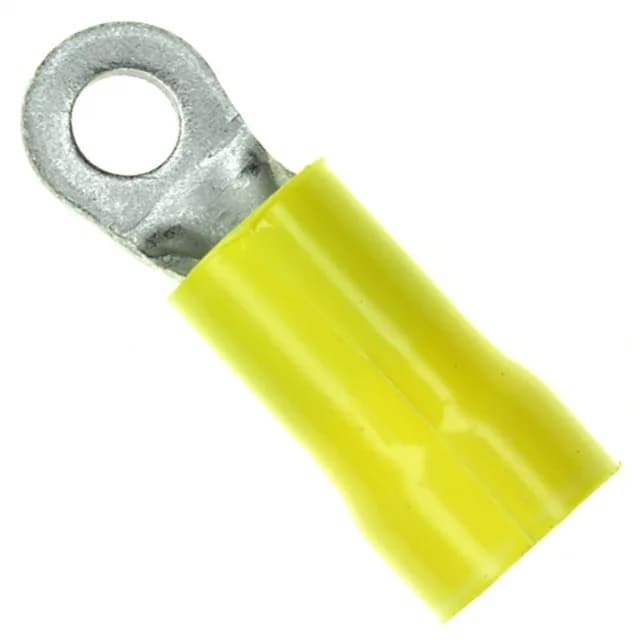

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 34852, 10-12 AWG, #6 stud size, circular terminal type, tin-plated copper contact, insulated PVC, free-hanging crimp termination, yellow, bulk.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.953\" (24.21mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
The 34852 is a Plasti-Grip ring terminal from TE Connectivity AMP Connectors, accepting 10-12 AWG wire and fitting a #6 stud size. The circular terminal uses a tin-plated copper contact with a serrated crimp barrel and a yellow PVC insulation sleeve rated for a 0.150" to 0.250" insulation diameter range.
The 34852 carries an Active product status from TE Connectivity AMP Connectors and ships in bulk packaging.
The 34852 accepts 10-12 AWG wire and fits a #6 stud size.
