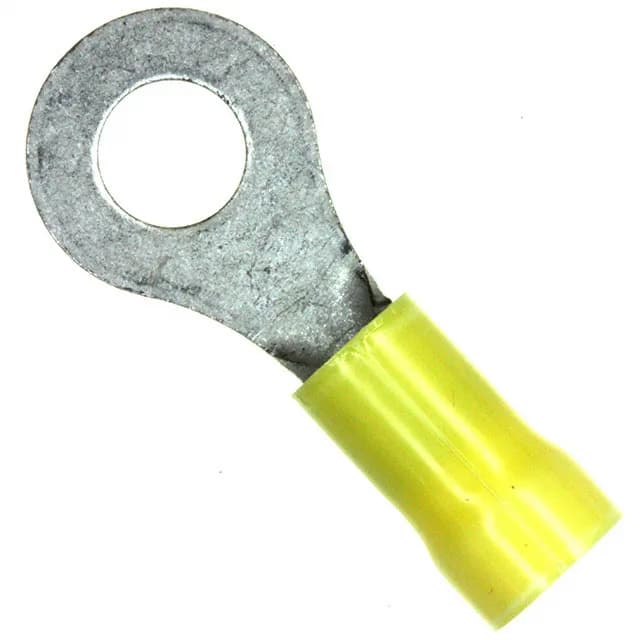

TE Connectivity AMP Connectors Plasti-Grip ring terminal, order code 34855, 10-12 AWG, #1/4 stud, circular, tin-plated copper contact, PVC insulated, yellow, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Plasti-Grip |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.531\" (13.49mm) |
| Material - insulation | Poly-Vinyl Chloride (PVC) |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.327\" (33.71mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
The 34855 is a yellow, PVC-insulated ring terminal from the TE Plasti-Grip series, accepting 10-12 AWG wire and terminating to a #1/4 stud. The tin-plated copper contact carries a serrated inner barrel for grip on the conductor, and the insulation is rated for free-hanging in-line use.
The 34855 is ROHS3 Compliant per the manufacturer listing.
The insulation is Poly-Vinyl Chloride (PVC) and the color is Yellow.
