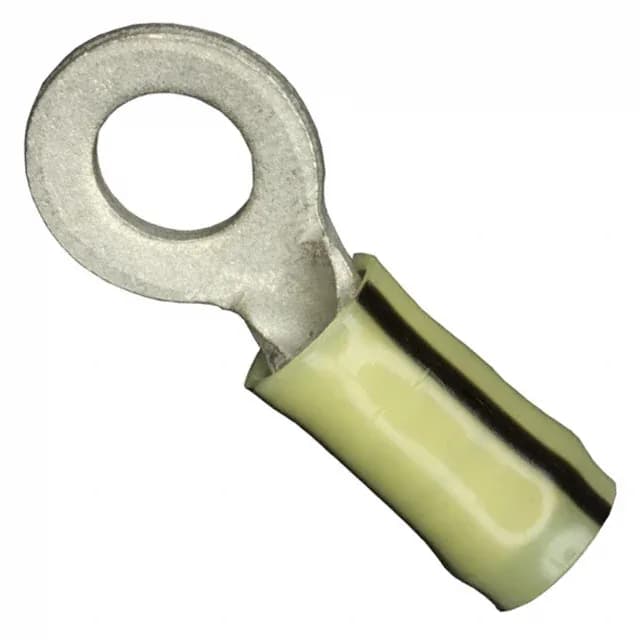

TE Connectivity AMP Connectors 34974
MPN34974
Active
CONN RING CIRC 14-16AWG #1/4
$0.8700Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Yellow, Black Stripe |
| Contact material | Copper |
| Width - outer edges | 0.500\" (12.70mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Heavy Duty, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
| Length - overall | 1.188\" (30.18mm) |
| Insulation diameter | 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm) |
