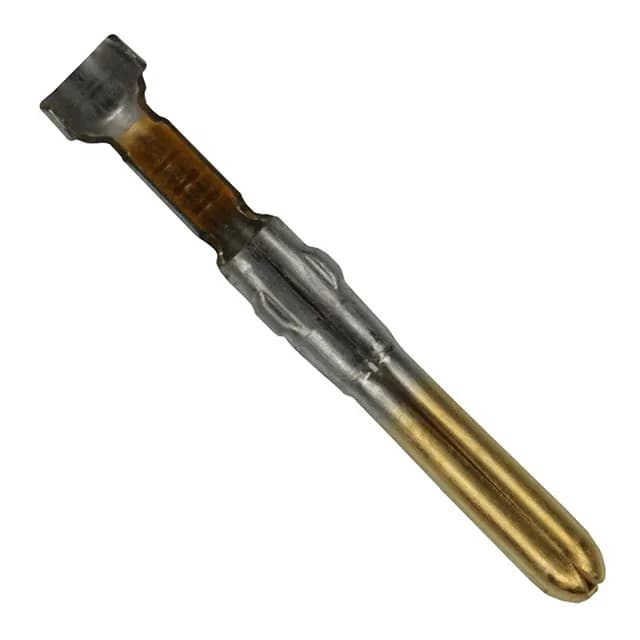

TE Connectivity AMP Connectors Commercial MATE-N-LOK pin contact, order code 350079-5, 22-30 AWG, gold-plated mating surface, 30.0µin (0.76µm) thickness, crimp termination, Tape & Reel packaging.
| Parameter | Value |
|---|---|
| Series | Commercial MATE-N-LOK |
| Wire gauge | 22-30 AWG |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Pin or socket | Pin |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 350079-5 is the gold-plated pin member of TE's Commercial MATE-N-LOK crimp contact line, accepting 22-30 AWG wire.
Within the 350079 pin family, the 350079-5 carries gold plating while the 350079-4 and 350079-1 use tin — gold suits higher mating-cycle duty or environments where tin fretting corrosion is a concern.
The 350079-5 is ROHS3 Compliant per the manufacturer listing.
The 350079-5 is a pin contact; 350078-5 is the matching socket. They share the same wire gauge range (22-30 AWG) and gold plating thickness (30.0µin), and both are part of the Commercial MATE-N-LOK series — they are designed to mate together, not to replace each other.
