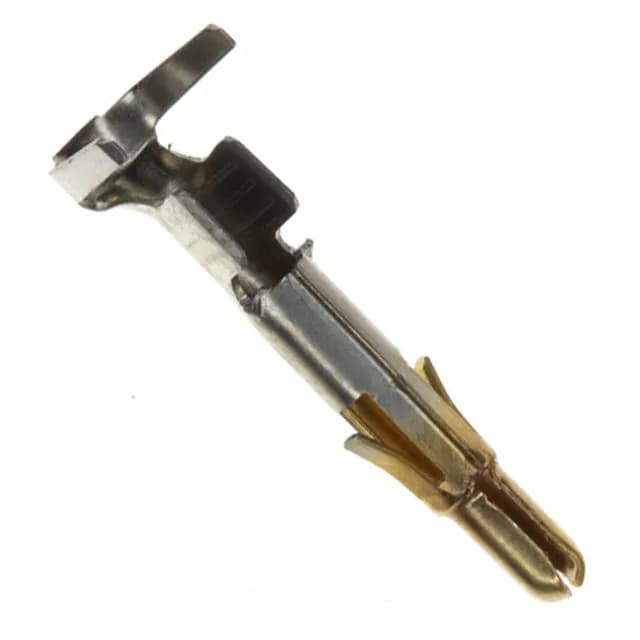

TE Connectivity AMP Connectors Universal MATE-N-LOK split pin, order code 350707-7, 14-20 AWG, gold contact finish 30.0µin (0.76µm), crimp termination, bulk package.
| Parameter | Value |
|---|---|
| Series | Universal MATE-N-LOK |
| Wire gauge | 14-20 AWG |
| Package | Bulk |
| Pin or socket | Split Pin |
| Contact finish | Gold |
| Contact termination | Crimp |
| Contact finish thickness | 30.0µin (0.76µm) |
The 350707-7: The 14-20 AWG wire range covers common power and signal circuits in industrial and automotive harnesses — the split-pin geometry provides four contact beams for consistent normal force across the wire gauge tolerance. Gold finish is specified for applications requiring low and stable contact resistance over many mating cycles; the 30.0µin thickness exceeds the 15µin minimum typical for signal-level reliability.
The 350707-7 is ROHS3 Compliant per TE's current compliance declaration. No UL or IEC certification is listed in the available records.
