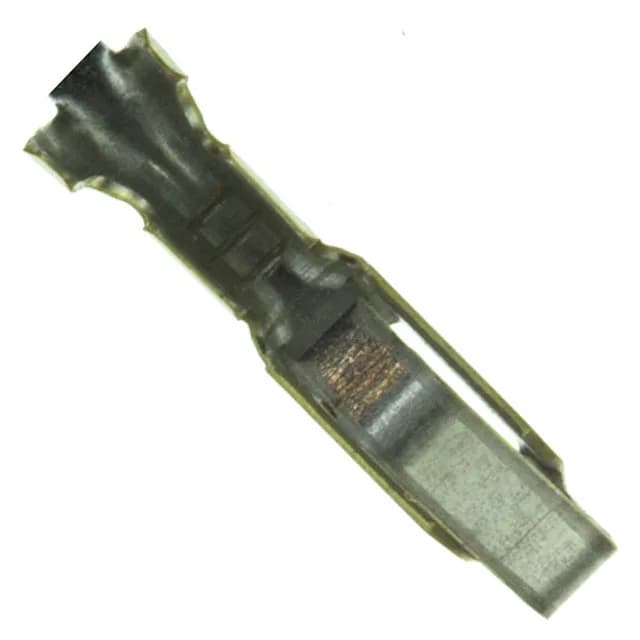

350980-2 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

350980-2 TE Connectivity SL-156 Crimp Socket 18-24 AWG Tin

MPN350980-2
Active

TE Connectivity AMP SL-156 power socket, order code 350980-2, 18-24 AWG, tin-plated contact, 130.0µin (3.30µm) finish, crimp termination, Tape & Reel or Cut Tape packaging.

$0.1Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

350980-2 Technical Specifications
ParameterValue
TypePower
SeriesSL-156
Wire gauge18-24 AWG
PackageTape & Reel (TR); Cut Tape (CT)
Pin or socketSocket
Contact finishTin
Contact terminationCrimp
Contact finish thickness130.0µin (3.30µm)

Product details

Crimp termination and wire range

The 350980-2 is the tin-plated crimp socket in the SL-156 series, accepting 18-24 AWG wire with a contact finish thickness of 130.0µin (3.30µm). Crimp termination suits automated or hand-tool assembly; the socket mates with SL-156 header pins for power applications.

Plating choices across the SL-156 family

Within the same wire gauge range, the 350980-2's tin plating (130.0µin) contrasts with the gold-plated 350980-3 (30.0µin gold) and the thinner tin finish of 3-350980-1 (80.0µin tin) — the plating grade and thickness affect contact resistance stability over mating cycles.

Frequently asked questions

Will 350980-2 drop into a panel specified around 350980-3 without rewiring?

The 350980-2 and 350980-3 share the same wire gauge range (18-24 AWG) and crimp termination — the difference is contact finish: tin vs gold. The socket form factor and housing interface are identical, so no rewiring is needed; the gold-plated peer 350980-3 provides higher mating cycle endurance.
