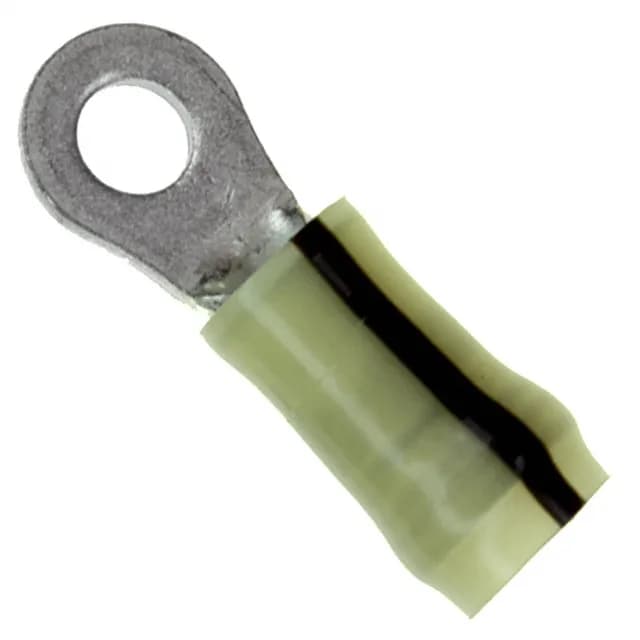

TE Connectivity AMP Connectors PIDG ring terminal, order code 35106, #8 stud, 14-16 AWG, insulated, tin-plated copper, 0.048" (1.22mm) thick, free hanging, crimp termination.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Yellow, Black Stripe |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Heavy Duty, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.046\" (26.57mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
The 35106 is a PIDG-series ring terminal from TE Connectivity AMP Connectors, accepting 14-16 AWG wire and terminating to a #8 stud. The terminal is insulated with polyamide (nylon), carries a tin-plated copper contact, and uses a serrated crimp barrel for conductor grip.
The 35106 is RoHS3 compliant.
