TE Connectivity AMP Connectors 35107

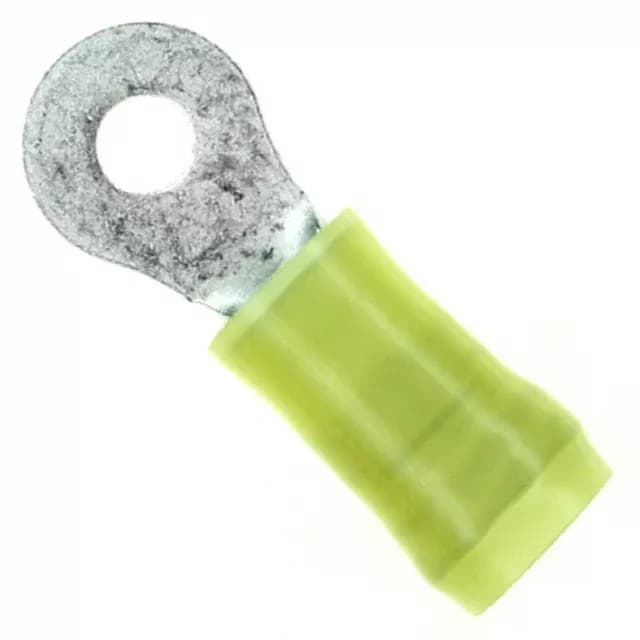

35107 PIDG Ring Terminal, 10-12 AWG, #6 Stud, Yellow

MPN 35107
Active

TE Connectivity PIDG ring terminal, order code 35107, 10-12 AWG, #6 stud size, circular terminal type, tin-plated copper contact, insulated yellow nylon barrel, crimp termination, free hanging.

$0.4400 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSNot applicable
IncotermsDAP / DDP Available
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

35107 specifications
ParameterValue
SeriesPIDG
MountingFree Hanging (In-Line)
Terminal typeCircular
Wire gauge10-12 AWG
ColorYellow
Contact materialCopper
Width - outer edges0.375\" (9.53mm)
Material - insulationPolyamide (PA), Nylon
PackageBulk
FeaturesSerrated Termination
Thickness0.040\" (1.02mm)
InsulationInsulated
TerminationCrimp
Stud (Tab size)6 Stud
Contact finishTin
Length - overall1.083\" (27.51mm)
Insulation diameter0.150\" ~ 0.250\" (3.81mm ~ 6.35mm)

Product details

Ring terminal for 10-12 AWG, #6 stud

The 35107 is the 10-12 AWG member of TE's PIDG ring terminal line, terminated by crimp and accepting a #6 stud. The tin-plated copper contact is rated for the full 10-12 AWG current capacity; the insulated nylon barrel covers 0.150" ~ 0.250" (3.81mm ~ 6.35mm) insulation diameter.

Serrated barrel and insulation grip

Serrated Termination on the crimp barrel bites through surface oxides for a gas-tight connection; the polyamide (PA) nylon insulation sleeve provides a positive wire stop and strain relief. Overall length is 1.083" (27.51mm), outer width 0.375" (9.53mm), and the barrel accepts insulation diameters from 0.150" to 0.250" (3.81mm ~ 6.35mm).

Siblings in the ring terminal family

Within the PIDG series, the 35107 serves 10-12 AWG at a #6 stud. For a smaller wire gauge (14-16 AWG) at a #8 stud, the Solistrand 1377172-7 is a non-insulated option with brazed seam and serrated termination. The 133521-1 (Solistrand, Strato-Therm) handles 18-22 AWG at an #8 stud with gold-plated contacts — a different wire range and stud size, not an interchangeable fit.
