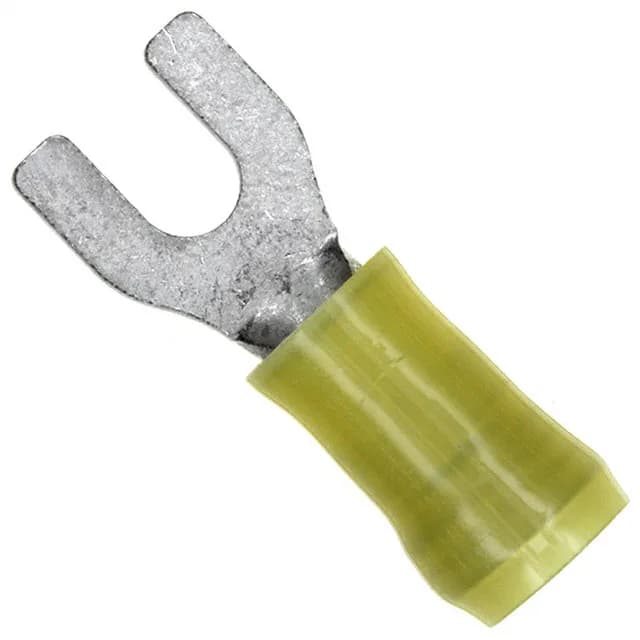

TE Connectivity AMP Connectors 35152
MPN35152
Active
CONN SPADE TERM 10-12AWG #8 YEL
$0.7500Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.406\" (10.31mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Insulation | Insulated |
| Termination | Crimp |
All specifications
| Parameter | Value |
|---|---|
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.095\" (27.81mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
| Length - termination | 0.591\" (15.01mm) |
| Tongue inside opening | 0.171\" (4.34mm) |
| Length - ring center to termination | 0.296\" (7.52mm) |
