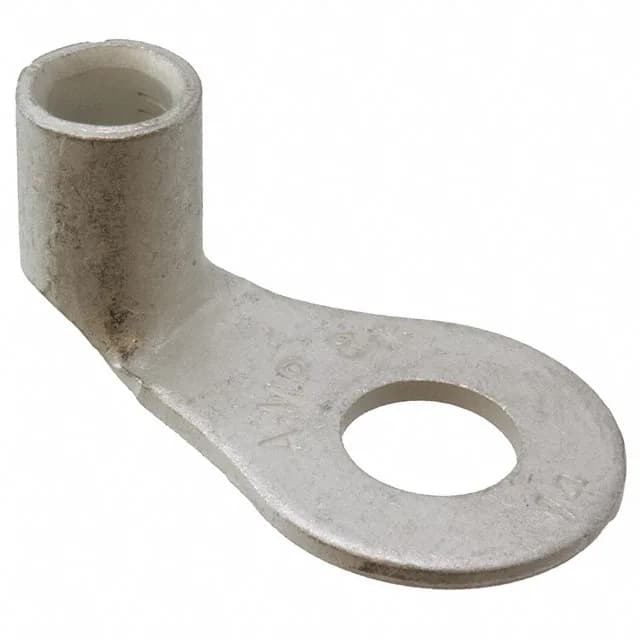

TE Connectivity AMP Connectors Solistrand ring terminal, order code 35277, circular tubular (battery lug), 8 AWG, 1/4 stud, tin-plated copper, 0.048" (1.22mm) thickness, non-insulated, crimp termination, free hanging right-angle.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Circular Tubular (Battery Lugs) |
| Wire gauge | 8 AWG |
| Contact material | Copper |
| Width - outer edges | 0.594\" (15.09mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/4 Stud |
| Contact finish | Tin |
The 35277 is the 8 AWG member of TE's Solistrand ring terminal line, accepting a 1/4 stud and terminating with a crimp. The terminal is tin-plated copper, 0.048" (1.22mm) thick, non-insulated, and features a brazed seam with serrated termination for secure conductor grip.
The 35277 is orderable through distribution. A quote can be requested against the BOM quantity.
The 35277 is RoHS compliant per TE Connectivity AMP Connectors.
