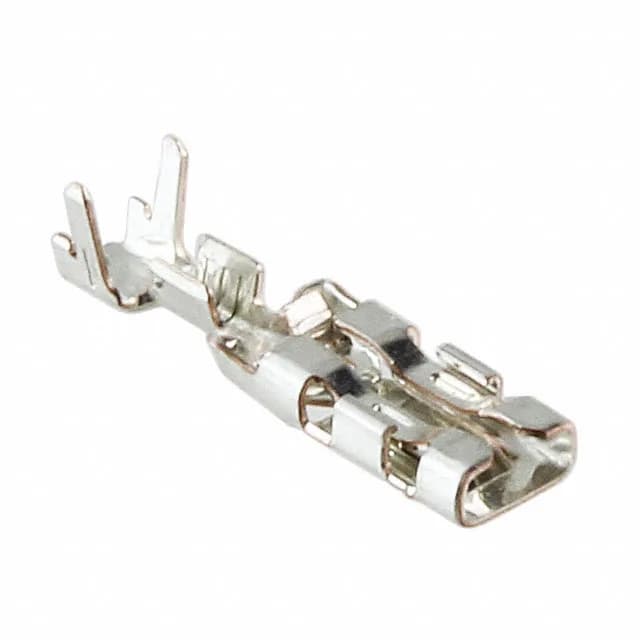

TE Connectivity AMP Connectors 353249-2
MPN353249-2
Active
CONN QC RCPT 22-26AWG 0.110
$0.1200Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPositive Lock EX-III
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Positive Lock EX-III |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 22-26 AWG |
| Tab width | 0.110\" (2.79mm) |
| Contact material | Phosphor Bronze |
| Gender | Female |
| Package | Tape & Reel (TR) Cut Tape (CT) |
| Insulation | Non-Insulated |
| Tab length | 0.283\" (7.20mm) |
| Termination | Crimp |
| Tab thickness | 0.020\" (0.51mm) |
| Contact finish | Tin |
| Length - overall | 0.614\" (15.60mm) |
| Insulation diameter | 0.051\" ~ 0.079\" (1.30mm ~ 2.00mm) |
