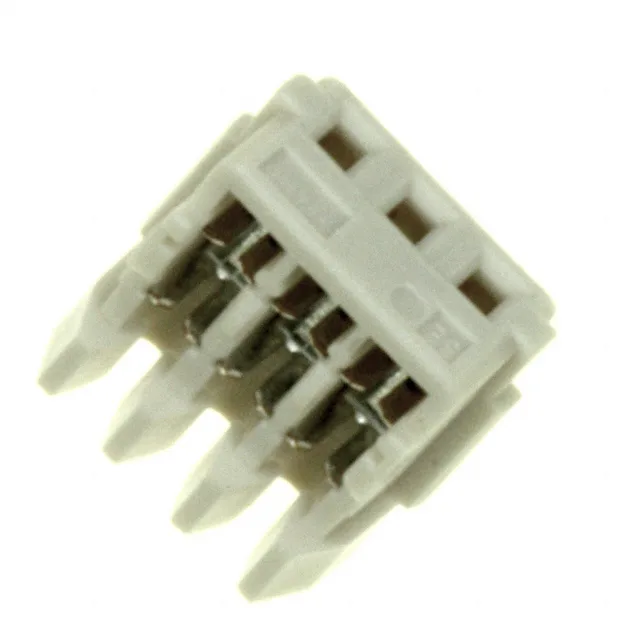

3-Position IDC Receptacle for 1.50mm Pitch Harnesses
The 1.50mm pitch keeps the connector compact — suited for low-current signal harnesses where board space is tight. Tin-plated female sockets handle the contact duty; the closed-end back wall prevents the wire from pushing through the housing during assembly.
What the 1.50mm Pitch and 26-28 AWG Window Mean on the Floor
The 0.059" (1.50mm) pitch is the ruling dimension for the mating header footprint — every other clearance follows from it. The IDC slot is cut for 26-28 AWG only; a 24 AWG wire will not seat, and 30 AWG will rattle in the slot. No crimp tooling needed — the wire is punched into the slot with a hand press or automated IDC head. The closed end gives a positive stop so the wire bottoms out at the same depth every time.
Active Production — No LTB Watch Needed
Active lifecycle per the TE Connectivity record. ROHS3 compliant. This BOM line does not carry an obsolescence risk.
Mates With the Mini CT Header — Confirm the Circuit Count
The gray housing is the standard colour for this series.
