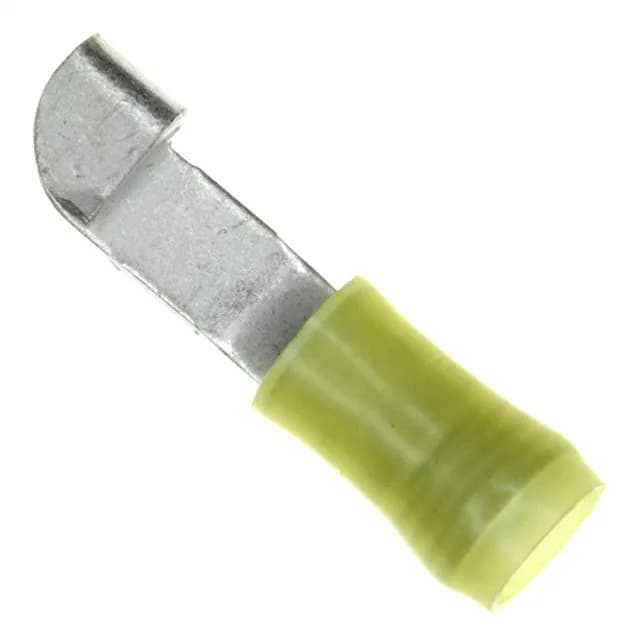

TE Connectivity AMP Connectors PIDG knife terminal, order code 35762, 10-12 AWG, yellow, insulated, tin-plated copper contact, 1.260" (32.00mm) overall length, bulk package.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Material - insulation | Polyamide (PA), Nylon |
| Height stacking (Mating) | 0.281\" (7.14mm) |
| Package | Bulk |
| Insulation | Insulated |
| Contact finish | Tin |
| Length - overall | 1.260\" (32.00mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
The 35762 is a PIDG-series knife terminal from TE Connectivity AMP Connectors, accepting 10-12 AWG wire with a tin-plated copper contact. The yellow nylon insulation covers a wire diameter range of 0.150" to 0.250" (3.81 mm to 6.35 mm), and the overall length is 1.260" (32.00 mm).
The 35762 accepts 10-12 AWG wire, with an insulation diameter range of 0.150" to 0.250" (3.81 mm to 6.35 mm).
