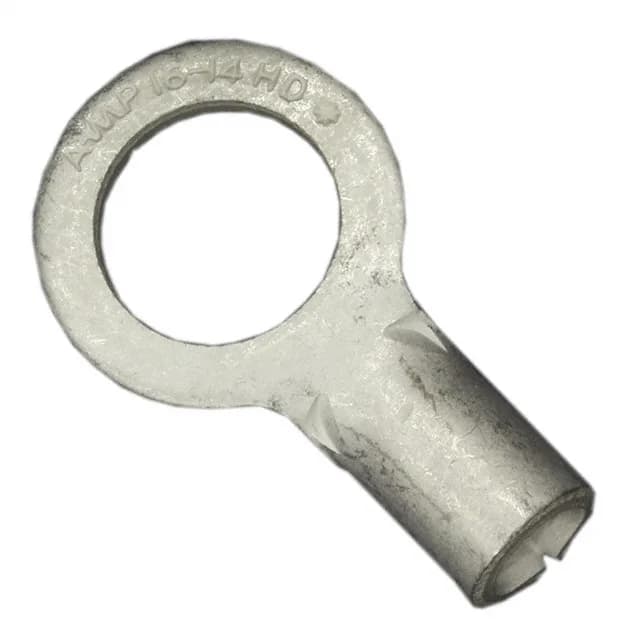

TE Connectivity AMP Connectors Solistrand ring terminal, order code 35776, 14-16 AWG, 5/16 stud, tin-plated copper, non-insulated, crimp termination, free hanging, brazed seam, heavy duty, serrated termination.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Contact material | Copper |
| Width - outer edges | 0.500\" (12.70mm) |
| Package | Bulk |
| Features | Brazed Seam, Heavy Duty, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 5/16 Stud |
| Contact finish | Tin |
| Length - overall | 0.865\" (21.97mm) |
The 35776: The terminal is non-insulated, tin-plated copper, and uses a crimp termination with a brazed seam and serrated inner barrel for conductor grip.
Within the Solistrand 14-16 AWG ring terminal family, the 35776 (5/16 stud) sits between the 35775 (1/4 stud) and the 327732 (3/8 stud) — all share the same 0.048" (1.22 mm) thickness, tin plating, and non-insulated crimp body.
The 35775 uses the same 0.048" (1.22 mm) thickness, 14-16 AWG wire range, and tin-plated copper construction, but fits a 1/4 stud instead of 5/16.
The 35776 is RoHS Compliant per TE Connectivity AMP Connectors documentation.
