PIDG ring terminal for 10-12 AWG, #8 stud

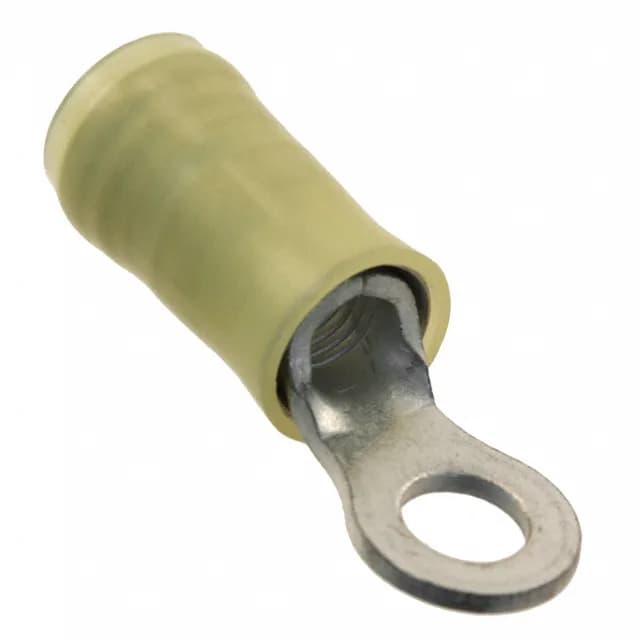

The 35787: The yellow nylon insulation covers a tin-plated copper contact with serrated termination, overall length 1.031" (26.19mm), width 0.312" (7.92mm), and thickness 0.040" (1.02mm).
TE PIDG 35787 Ring Terminal, 10-12 AWG, #8 Stud, Yellow
MPN35787
Active
TE Connectivity AMP Connectors PIDG ring terminal, order code 35787, 10-12 AWG, #8 stud, circular, yellow, insulated, 0.040" (1.02mm) thick, tin-plated copper, crimp termination, free hanging, bulk.
$0.6900Ref. price · indicative, final on quote
RoHSNot applicable
SeriesPIDG
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.312\" (7.92mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.040\" (1.02mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 8 Stud |
| Contact finish | Tin |
| Length - overall | 1.031\" (26.19mm) |
| Insulation diameter | 0.150\" ~ 0.230\" (3.81mm ~ 5.84mm) |
Product details
Frequently asked questions
Will the 35787 drop into a panel specified around the 35107 without rewiring?
No — the 35787 fits a #8 stud, while the 35107 fits a #6 stud. The wire gauge range, insulation colour, and contact thickness are the same, but the stud hole size differs.
