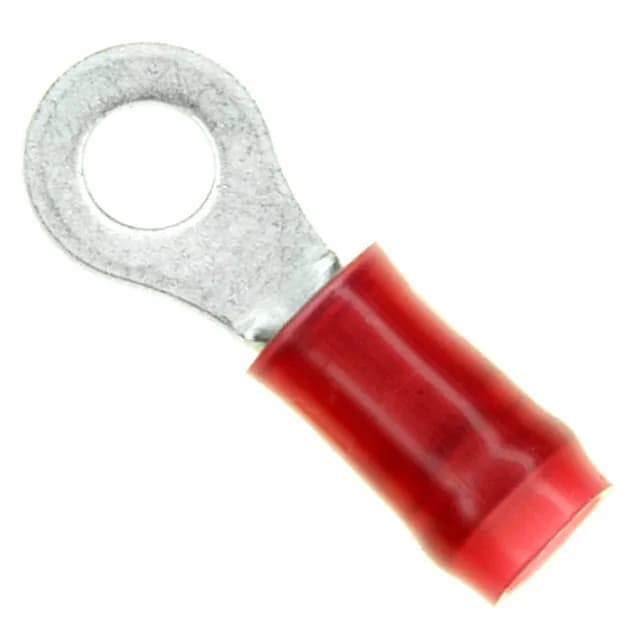

TE Connectivity AMP Connectors 36152
MPN36152
Active
CONN RING CIRC 16-22AWG #6 CRIMP
$0.3100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 16-22 AWG |
| Color | Red |
| Contact material | Copper |
| Width - outer edges | 0.281\" (7.14mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.797\" (20.24mm) |
| Insulation diameter | 0.105\" ~ 0.140\" (2.67mm ~ 3.56mm) |
