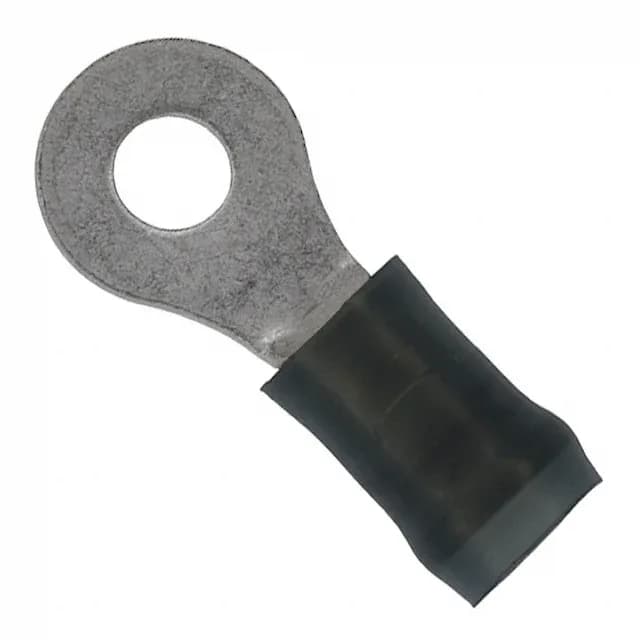

TE Connectivity AMP Connectors 36158
MPN36158
Active
CONN RING CIRC 14-16AWG #6 CRIMP
$0.3400Ref. price · indicative, final on quote
RoHSNot applicable
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Blue |
| Contact material | Copper |
| Width - outer edges | 0.343\" (8.71mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.031\" (0.79mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.859\" (21.82mm) |
| Insulation diameter | 0.105\" ~ 0.170\" (2.67mm ~ 4.32mm) |
