TE Connectivity AMP Connectors 36161
MPN36161
Active

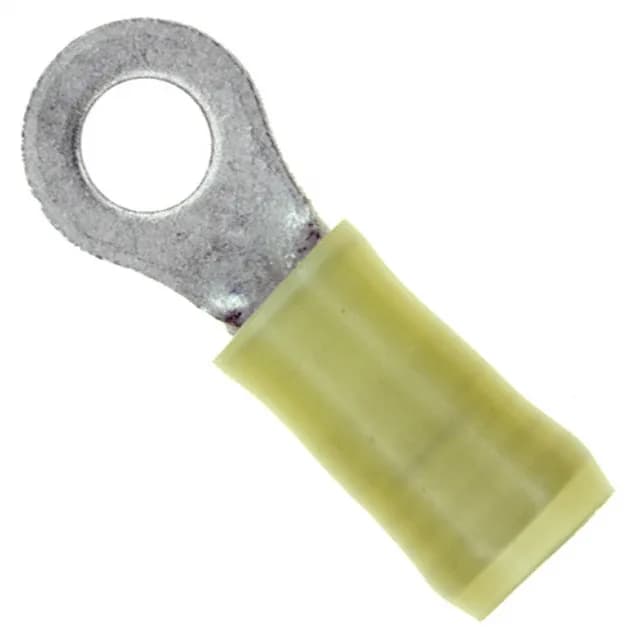

CONN RING CIRC 10-12AWG #10
$0.4100Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesPIDG
Sourced new & surplus through independent channelsAuthenticity-screened · ESD-safe packingListing updated Jul 2026
Specifications
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 10-12 AWG |
| Color | Yellow |
| Contact material | Copper |
| Width - outer edges | 0.375\" (9.53mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Serrated Termination |
| Thickness | 0.039\" (0.99mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 10 Stud |
| Contact finish | Tin |
| Length - overall | 1.083\" (27.51mm) |
| Insulation diameter | 0.105\" ~ 0.230\" (2.67mm ~ 5.84mm) |
