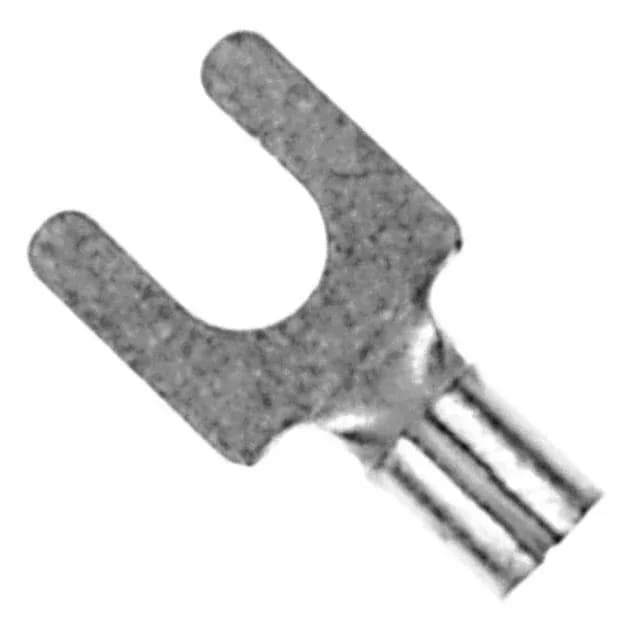

TE Connectivity AMP Connectors Solistrand spade terminal, order code 36195, 16-22 AWG, #6 stud, tin-plated copper, non-insulated, crimp termination, free hanging, bulk package.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Standard |
| Wire gauge | 16-22 AWG |
| Contact material | Copper |
| Width - outer edges | 0.297\" (7.54mm) |
| Package | Bulk |
| Features | Brazed Seam, Serrated Termination |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 6 Stud |
| Contact finish | Tin |
| Length - overall | 0.530\" (13.46mm) |
| Length - termination | 0.181\" (4.60mm) |
| Tongue inside opening | 0.145\" (3.68mm) |
| Length - ring center to termination | 0.203\" (5.16mm) |
The 36195 is a non-insulated spade terminal from the TE Connectivity Solistrand series, accepting 16-22 AWG wire and fitting a #6 stud. The tin-plated copper contact is crimp-terminated and free hanging, with a brazed seam and serrated termination for conductor grip.
The 36195 accepts 16-22 AWG wire and fits a #6 stud.
Yes, the 36195 is ROHS3 compliant.
