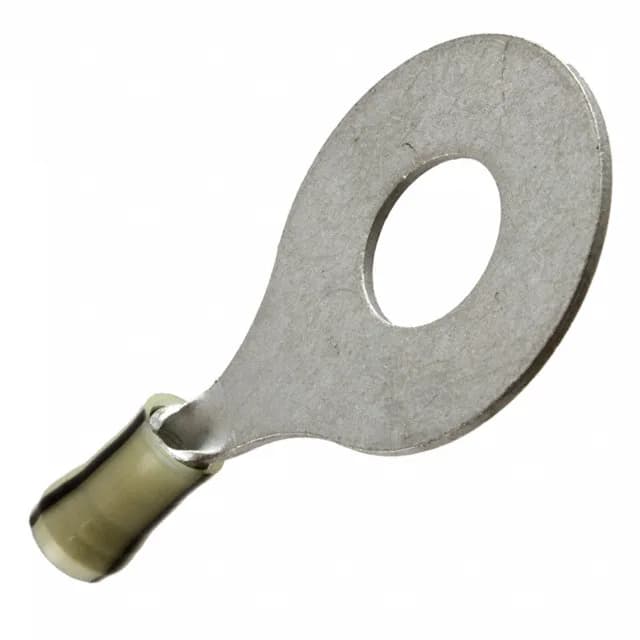

TE Connectivity AMP Connectors PIDG ring terminal, order code 36203, 14-16 AWG, #1/2 stud, circular, tin-plated copper, insulated, 0.048" (1.22mm) thick, free hanging, crimp termination, bulk.
| Parameter | Value |
|---|---|
| Series | PIDG |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 14-16 AWG |
| Color | Yellow, Black Stripe |
| Contact material | Copper |
| Width - outer edges | 1.250\" (31.75mm) |
| Material - insulation | Polyamide (PA), Nylon |
| Package | Bulk |
| Features | Heavy Duty, Serrated Termination |
| Thickness | 0.048\" (1.22mm) |
| Insulation | Insulated |
| Termination | Crimp |
| Stud (Tab size) | 1/2 Stud |
| Contact finish | Tin |
| Length - overall | 2.219\" (56.36mm) |
| Insulation diameter | 0.150\" ~ 0.250\" (3.81mm ~ 6.35mm) |
The 36203 is the 14-16 AWG member of TE's PIDG ring terminal line, terminated to a #1/2 stud with a circular tin-plated copper contact. Rated for 14-16 AWG wire, the terminal is insulated with polyamide (nylon) and carries a serrated inner barrel for conductor grip. Overall length is 2.219" (56.36mm) with outer edge width of 1.250" (31.75mm).
TE Connectivity AMP Connectors supplies the 36203 under the PIDG series. Volume pricing is quoted per RFQ against the BOM quantity; no stock-holding claim is made here.
No pin-compatible alternative is recorded in the PIDG series for the 36203. The terminal is specific to 14-16 AWG wire and a #1/2 stud size; other PIDG ring terminals differ in wire gauge or stud size and are not direct drop-in replacements.
The 36203 is listed with color Yellow, Black Stripe per the PIDG series specification.
