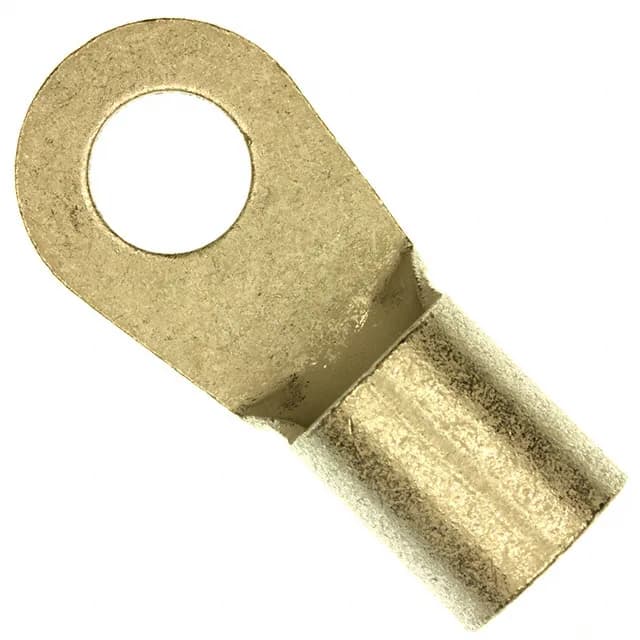

TE Connectivity AMP Connectors Solistrand ring terminal, order code 36918, 1/0 AWG, #7/16 stud, circular terminal type, tin-plated copper contact, non-insulated, brazed seam, crimp termination, free hanging.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 1/0 AWG |
| Contact material | Copper |
| Width - outer edges | 0.875\" (22.23mm) |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.070\" (1.78mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 7/16 Stud |
| Contact finish | Tin |
| Length - overall | 1.956\" (49.68mm) |
The 36918 is the 1/0 AWG member of TE's Solistrand ring terminal line, accepting a #7/16 stud size. The terminal is formed from tin-plated copper with a brazed seam, crimp-terminated, and ships non-insulated in bulk packaging.
Overall length is 1.956" (49.68 mm) with an outer edge width of 0.875" (22.23 mm) and a material thickness of 0.070" (1.78 mm).
The 36918 is RoHS Compliant per TE Connectivity AMP Connectors. Additional compliance documentation is available on request.
