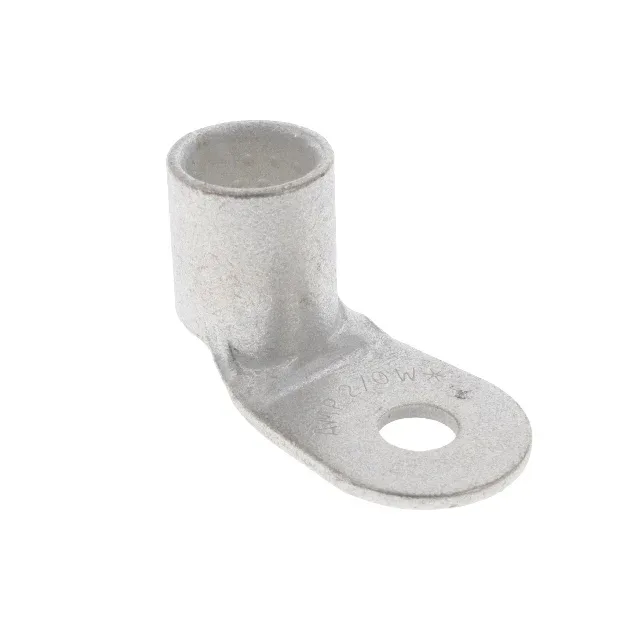

TE Connectivity AMP Connectors Solistrand ring terminal, order code 36922-1, 1/0 AWG, #5/16 stud size, circular terminal type, tin-plated copper contact, brazed seam, non-insulated, crimp flag termination, free hanging right-angle mount.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line), Right Angle |
| Terminal type | Circular |
| Wire gauge | 1/0 AWG |
| Contact material | Copper |
| Width - outer edges | 0.946\" (24.03mm) |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.080\" (2.03mm) |
| Insulation | Non-Insulated |
| Termination | Crimp, Flag |
| Stud (Tab size) | 5/16 Stud |
| Contact finish | Tin |
The 36922-1 is the 1/0 AWG member of TE Connectivity's Solistrand ring terminal line, terminated with a crimp flag and accepting a 5/16 stud. The terminal is non-insulated with a brazed seam, tin-plated copper, and measures 0.946" (24.03 mm) across the outer edges.
