Ring terminal for 2/0 AWG cable
The 36923: The terminal is tin-plated copper, 0.080" (2.03mm) thick, with a brazed seam and non-insulated barrel for crimp termination in free-hanging applications.

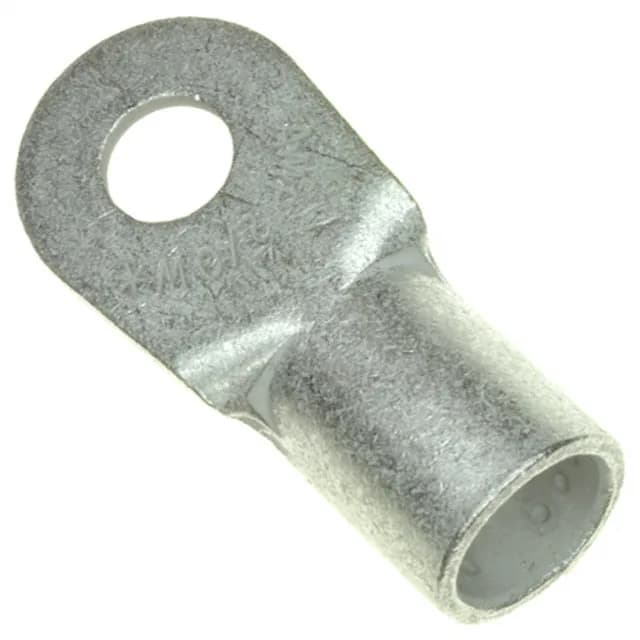

36923 TE Solistrand Ring Terminal, 2/0 AWG, #3/8 Stud
MPN36923
Active
TE Connectivity AMP Connectors Solistrand ring terminal, order code 36923, 2/0 AWG, #3/8 stud size, circular terminal type, 0.080" (2.03mm) thickness, tin-plated copper, brazed seam, non-insulated, crimp termination, free hanging.
$5.1600Ref. price · indicative, final on quote
RoHSNot applicable
SeriesSolistrand
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026
Specifications
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 2/0 AWG |
| Contact material | Copper |
| Width - outer edges | 0.946\" (24.03mm) |
| Package | Bulk |
| Features | Brazed Seam |
| Thickness | 0.080\" (2.03mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 2.000\" (50.80mm) |
Product details
Frequently asked questions
What wire gauge and stud size does the 36923 ring terminal fit?
The 36923 accepts 2/0 AWG wire and fits a #3/8 stud.
