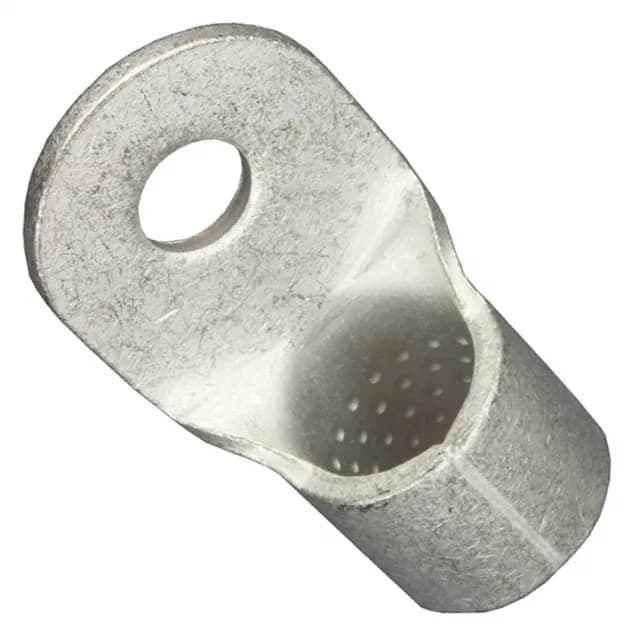

TE Connectivity AMP Connectors Solistrand ring terminal, order code 36932, 4/0 AWG, 3/8 stud size, circular terminal type, tin-plated copper contact, non-insulated, crimp termination, free hanging (in-line) mounting, bulk package.
| Parameter | Value |
|---|---|
| Series | Solistrand |
| Mounting | Free Hanging (In-Line) |
| Terminal type | Circular |
| Wire gauge | 4/0 AWG |
| Contact material | Copper |
| Width - outer edges | 1.150\" (29.21mm) |
| Package | Bulk |
| Thickness | 0.102\" (2.59mm) |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Stud (Tab size) | 3/8 Stud |
| Contact finish | Tin |
| Length - overall | 2.206\" (56.03mm) |
The 36932 is the 4/0 AWG member of TE's Solistrand ring terminal line, accepting a 3/8 stud and crimping onto the cable with a brazed-seam barrel. The terminal is tin-plated copper, non-insulated, and rated for free-hanging in-line mounting — the 0.102" (2.59 mm) material thickness supports the current capacity of 4/0 AWG conductors.
The 36932 is RoHS Compliant per the manufacturer listing.
