TE Connectivity AMP Connectors 380635-1

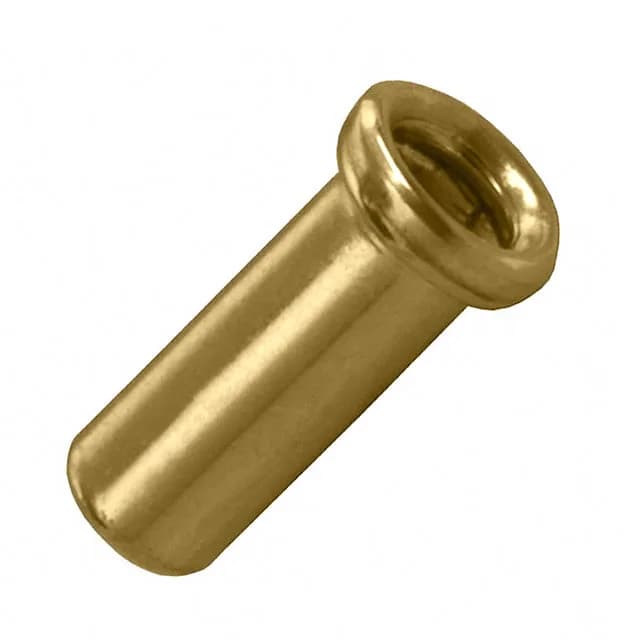

380635-1 TE Connectivity Pin Receptacle, 0.018-0.040" Pin

MPN 380635-1
Active

TE Connectivity AMP 380635-1, PCB pin receptacle, accepts 0.018"-0.040" pin diameter, gold-plated beryllium copper contact, solder termination, 0.145" socket depth, Bulk.

$1.5900 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

380635-1 specifications
ParameterValue
Tail typeNo Tail
Mounting hole diameter0.086\" ~ 0.089\" (2.18mm ~ 2.26mm)
Operating temperature-65°C ~ 126°C
Socket depth0.145\" (3.68mm)
Contact materialBeryllium Copper
PackageBulk
TerminationSolder
Contact finishGold
Board thickness0.156\" (3.96mm)
Flange diameter0.125\" (3.18mm)
Insertion force0.12N ~ 0.34N
Length - overall0.236\" (6.00mm)
Pin hole diameter0.048\" (1.22mm)
Accepts pin diameter0.018\" ~ 0.040\" (0.46mm ~ 1.02mm)
Contact finish thickness30.0µin (0.76µm)

Product details

Gold plating and beryllium copper — why they matter

The contact material itself is beryllium copper — that alloy holds its spring force through temperature swings and repeated deflection, so the socket doesn't go loose after a few dozen insertions.

Solder termination and board fit details

This is a solder-terminated socket with no tail — the pin receptacle sits flush on the board. The socket depth is 0.145" (3.68mm), and the overall length is 0.236" (6.00mm). The mounting hole diameter needs to be between 0.086" and 0.089" (2.18mm-2.26mm), and the board thickness should be 0.156" (3.96mm) for proper seating.
