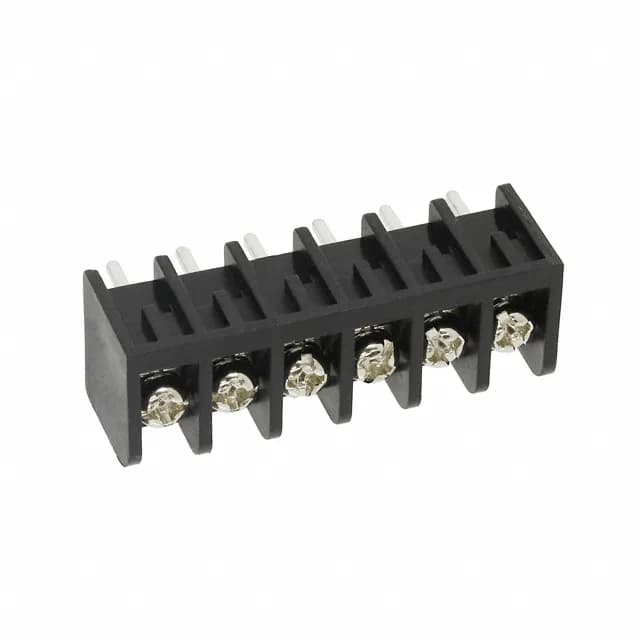

TE Connectivity #3, Buchanan barrier block, 6 circuits, 0.250" (6.35mm) pitch, 10A, 300V, through-hole, PC pin bottom termination, screws with captive plate, UL94 V-0, black thermoplastic.
| Parameter | Value |
|---|---|
| Series | #3, Buchanan |
| Barrier type | 3 Wall (Tri) |
| Mounting | Through Hole |
| Terminal block type | Barrier Block |
| Voltage rating | 300V |
| Current rating | 10A |
| Wire gauge | 18-22 AWG |
| Terminal screw finish | Zinc |
| Number of wire entries | 6 |
| Terminal screw material | Steel |
| Operating temperature | 120°C |
| Color | Black |
| Parameter | Value |
|---|---|
| Material - insulation | Thermoplastic |
| Material flammability rating | UL94 V-0 |
| Pitch | 0.250\" (6.35mm) |
| Package | Bulk |
| Rows | 1 |
| Top termination | Screws with Captive Plate |
| Bottom termination | PC Pin |
| Number of circuits | 6 |
The 3PCV-06-006: It carries a 10 A per circuit current rating at 300 V, with top termination via screws with captive plate and bottom termination via PC pins for soldering into the board.
Accepts 18-22 AWG wire into each of the 6 wire entries.
The 3-wall (tri) barrier design provides physical separation between adjacent terminals, reducing the risk of accidental shorting between circuits during wiring or maintenance.
The barrier block accepts 18-22 AWG wire into each of its 6 wire entries.
Yes, it is RoHS compliant per the manufacturer.
Sourced per RFQ; availability and pricing confirmed at quote time.
