TE Connectivity AMP Connectors 3PCV-07-006

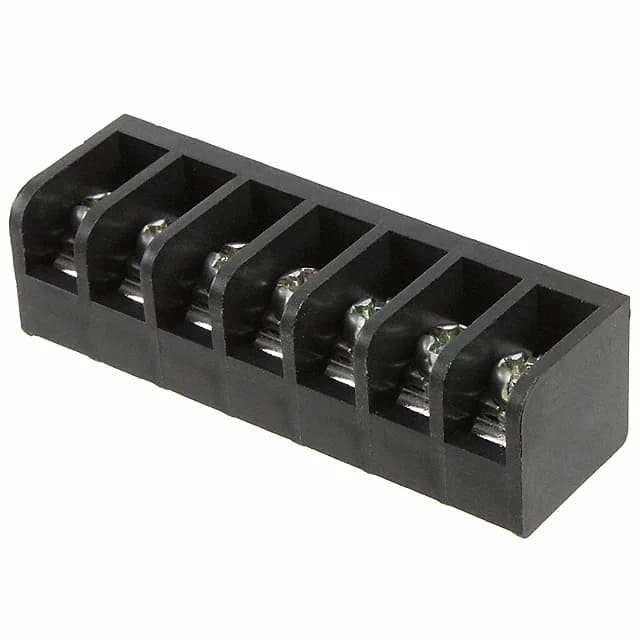

3PCV-07-006 Buchanan Barrier Strip, 7 Circuit, 0.250" Pitch

MPN 3PCV-07-006
Active

Buchanan #3 series barrier strip, 7 circuits, 0.250" (6.35mm) pitch, 10A, 300V, through-hole PC pin, screw with captive plate top termination, UL94 V-0, black thermoplastic.

$4.0300 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSRoHS Compliant
IncotermsDAP / DDP Available
Series#3, Buchanan
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

3PCV-07-006 key specifications
ParameterValue
Series#3, Buchanan
Barrier type3 Wall (Tri)
MountingThrough Hole
Terminal block typeBarrier Block
Voltage rating300V
Current rating10A
Wire gauge18-22 AWG
Terminal screw finishZinc
Number of wire entries7
Terminal screw materialSteel
Operating temperature120°C
ColorBlack

All specifications

3PCV-07-006 additional specifications
ParameterValue
Material - insulationThermoplastic
Material flammability ratingUL94 V-0
Pitch0.250\" (6.35mm)
PackageBulk
Rows1
Top terminationScrews with Captive Plate
Bottom terminationPC Pin
Number of circuits7

Product details

The Buchanan 3PCV-07-006 is a 7-circuit barrier strip from the #3 series, built for point-to-point wiring where a screw-terminated, field-serviceable connection is needed. Rated 10A at 300V, it handles low-to-moderate power loads — think terminal strips in industrial controls, HVAC panels, or test equipment — not bus-level current. The 3-wall (tri) barrier design isolates each terminal from its neighbour, reducing the chance of an accidental short across adjacent circuits during wiring or troubleshooting.

Accepts 18-22 AWG wire, which covers the range for signal wiring and moderate-power control circuits. The 7 wire entries match the 7 circuits; each position gets one wire. Terminal screw is steel with a zinc finish, standard for this class of block.
