TE Connectivity AMP Connectors 4-1473562-4 — Panel-Mount & In-Line Circular

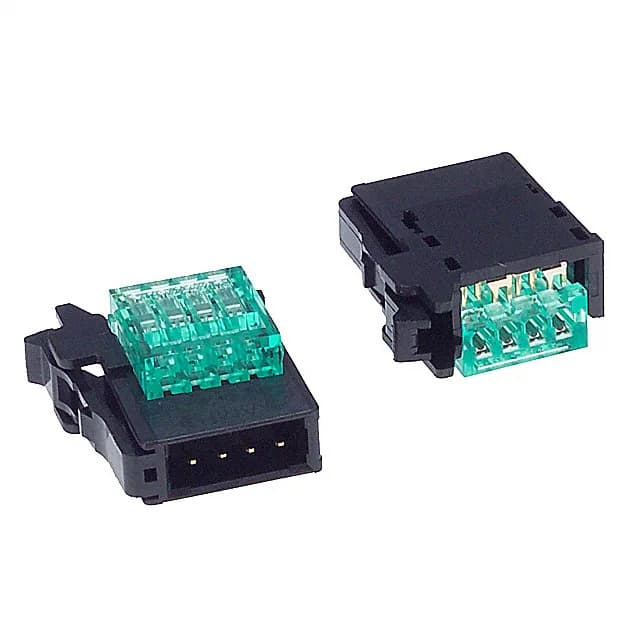

TE Connectivity 4-1473562-4 RITS Plug, 4 Pos, 2.00mm IDC

MPN4-1473562-4
Active

TE Connectivity RITS series, Plug, 4 positions, 0.079" (2.00mm) pitch, 1 row, IDC termination, Gold contacts, Free Hanging, Latch Lock, Black, Bulk.

$3.9100Ref. price · indicative, final on quote
RoHSRoHS Compliant
SeriesRITS
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

4-1473562-4 specifications
ParameterValue
SeriesRITS
Wire typeDiscrete
TypeMale Pin
MountingFree Hanging (In-Line)
Connector typePlug
Fastening typeLatch Lock
Cable terminationIDC
ColorBlack
Pitch0.079\" (2.00mm)
PackageBulk
Contact finishGold
Rows1
Positions4
Contact finish thickness8.00µin (0.203µm)

Product details

The TE Connectivity RITS 4-1473562-4 is a 4-position plug with IDC termination, designed for discrete wire in free-hanging (in-line) applications.

Mating and Termination — IDC Press-Fit, Latch Lock

Termination is IDC (Insulation Displacement Connection): the plug accepts discrete wire and the contacts pierce the insulation when pressed with a standard IDC hand tool or press. No wire stripping or crimping needed — the correct die set for 2.00 mm pitch ribbon cable seats all four conductors simultaneously. Free-hanging (in-line) mounting means no board footprint is required — the plug terminates a cable run that mates to a board-mounted header elsewhere.

Frequently asked questions

Does 4-1473562-4 mate with standard RITS headers?

Yes, this plug is designed to mate with the matching RITS series header of the same pitch (0.079" / 2.00mm) and position count. The latch lock on the plug engages with the header's locking ramp for a vibration-resistant connection.

Where can I buy 4-1473562-4 online?

This part is active and quoted to order against your BOM quantity.
