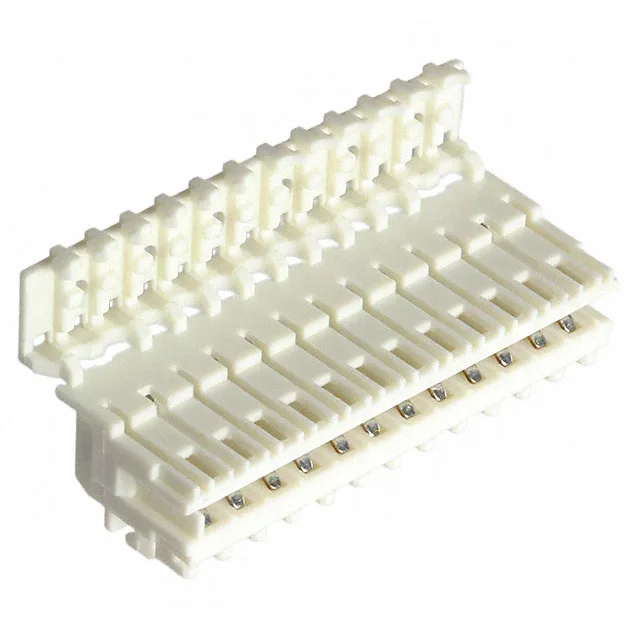

The TE Connectivity DuoPlug 4-1534797-2 is a 12-position receptacle built for mass-terminating discrete 22-24 AWG wire directly to the connector body using IDC (Insulation Displacement Contact) termination.
This receptacle uses IDC termination, which punches through the insulation to make contact with the conductor — no stripping or crimping required. It accepts 22-24 AWG discrete wire, which covers the typical signal and low-current power runs inside a control cabinet or appliance. If the harness sees frequent disconnect-reconnect cycles, a gold-plated contact variant would be the better call.
The 4-1534797-2 mates with DuoPlug series headers that share the same 0.098" (2.50mm) pitch and 12-position count. The receptacle is free-hanging (in-line), so it does not mount to the board itself — it connects to a PCB-mounted header. The right-angle cable exit keeps the wire bundle low-profile against the board, which matters when the assembly sits inside a shallow enclosure or against a panel. Confirm the header's orientation (vertical or right-angle) to match the harness routing direction.
