What This 40-Position IDC Receptacle Is

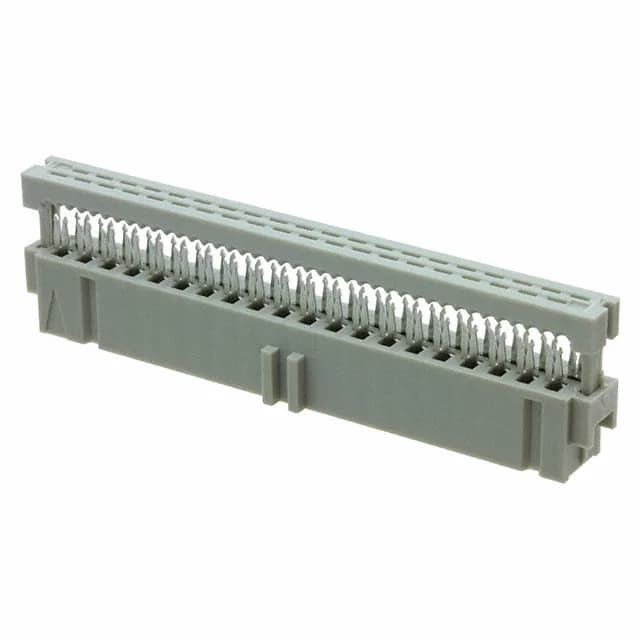

The TE 4-215882-0 is a 40-position, dual-row IDC receptacle from the Mark II series. It terminates standard 0.100" pitch ribbon cable with a mass-termination IDC slot — no wire stripping, no individual crimping. The 0.100" (2.54 mm) pitch on both the contact spacing and the row spacing means it lands on a standard 0.100" grid header, and the 30.0 µ" (0.76 µm) gold contact finish gives it the mating cycle life for repeated connect/disconnect in a harness or backplane cable assembly. The gray housing includes a feed-through slot and a polarizing key, so it mates in one orientation only — no chance of a reversed cable.
Where It Fits — Cable and Mating Half
This receptacle is built for standard 0.100" pitch ribbon cable — the IDC slot spacing matches the conductor pitch exactly, so the cable lays in and the cover presses down to pierce the insulation. The polarizing key in the housing aligns with a corresponding slot or keyway on the header, preventing a 180° mis-mate. The free-hanging (in-line) mount means it is used as a cable-end connector, not a board-mounted one.
