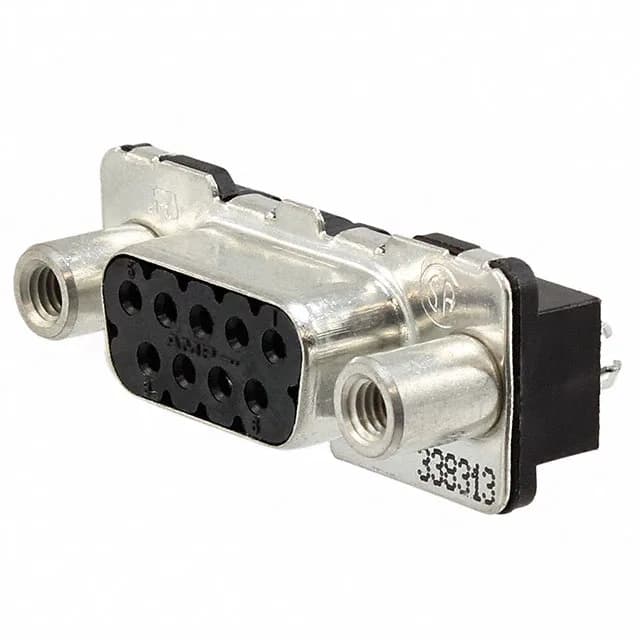

9-Position D-Sub Receptacle with Board Locks
The 4-338313-2: It carries female sockets in a 2-row DE-9 shell layout, rated 6 A per contact with gold-plated phosphor bronze contacts.
This receptacle mates with a standard DE-9 D-Sub plug (male pin) housing. The mating-side female screwlock accepts M3 hardware — the flange feature is on the receptacle side, so the plug must carry the mating screw or a threaded insert. Termination is through-hole solder: the 9 pins insert into a PCB and are wave-soldered. Board locks on the shell provide additional mechanical retention, reducing the risk of solder joint fatigue under vibration.
