TE Connectivity AMP Connectors 4-640426-4

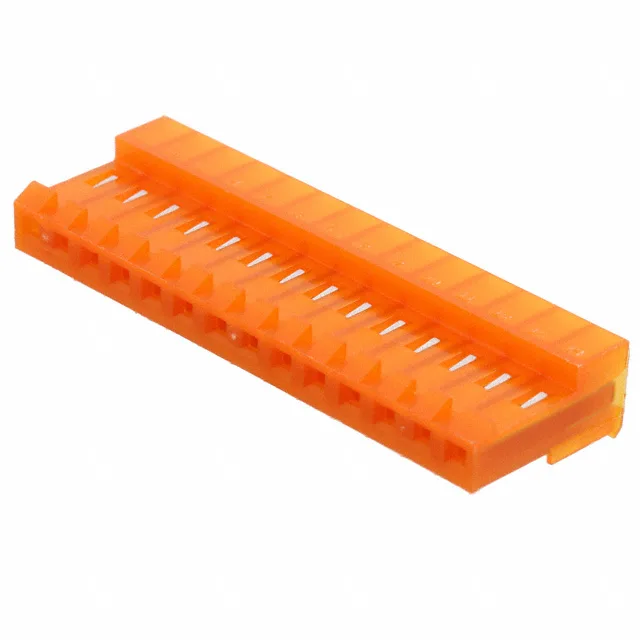

TE MTA-156 4-640426-4, 14 Pos IDC Receptacle, 0.156" Pitch

MPN 4-640426-4
Active

TE Connectivity MTA-156 IDC receptacle, 4-640426-4, 14 positions, 0.156" (3.96mm) pitch, 1 row, tin contacts, free-hanging, locking ramp.

$1.6800 Ref. price · indicative, final on quote
Dispatch SLA24-48h Global Rush
Quality CheckOriginal Seal & Physical QC
RoHSROHS3 Compliant
IncotermsDAP / DDP Available
SeriesMTA-156
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

4-640426-4 specifications
ParameterValue
SeriesMTA-156
Wire typeDiscrete
TypeFemale Socket
MountingFree Hanging (In-Line)
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge18 AWG
Cable terminationIDC
ColorOrange
Pitch0.156\" (3.96mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions14
Contact finish thickness80.0µin (2.03µm)

Product details

14-Position IDC Receptacle for 18 AWG Discrete Wire

The TE Connectivity MTA-156 4-640426-4 is a 14-circuit, single-row IDC receptacle designed for mass-termination of 18 AWG discrete wire. The 0.156" (3.96 mm) pitch matches the standard MTA-156 header footprint, making it a direct wire-to-board interconnect for power distribution or signal harnesses in appliances, HVAC, and industrial controls. The closed-end housing prevents wire over-insertion, and the orange colour aids visual line identification on the harness board.

This speeds harness assembly and reduces inventory of loose contacts. The free-hanging (in-line) mount suits it for cable-to-board runs where the receptacle floats on the wire bundle.

Contacts are tin-plated with a thickness of 80.0 µ" (2.03 µm). The thick finish provides better corrosion resistance than a flash coating, relevant for non-sealed environments with moderate humidity.

Locking Ramp Retention

This prevents accidental disconnection under vibration — common in appliance and HVAC fan assemblies where the harness sees movement during shipping or operation.

MPN
4-640426-4
