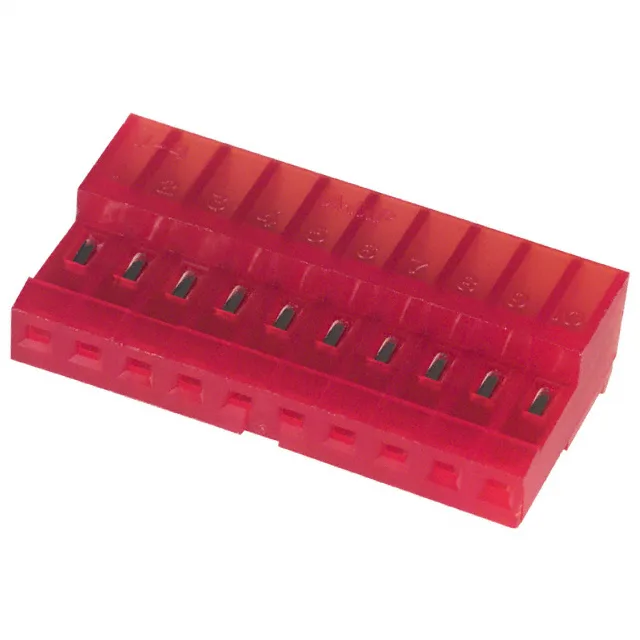

4-640440-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 4-640440-0, 10-Pos IDC Receptacle, 0.100" Pitch

MPN4-640440-0
Active

TE Connectivity MTA-100 IDC receptacle, 4-640440-0, 10 positions, 1 row, 0.100" (2.54mm) pitch, tin contacts, free-hanging right-angle, locking ramp, red housing.

$0.8100Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-640440-0 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions10
Contact finish thickness80.0µin (2.03µm)

Product details

The closed-end design prevents stubbing on the last wire, which is a common assembly headache on open-ended IDC connectors.

Termination and Wire Compatibility

This receptacle terminates via IDC — no wire stripping, no crimping. The IDC slot pierces the insulation on insertion, making gas-tight connections across all 10 positions in one press. For ribbon cable, the 0.100" pitch aligns directly with standard rainbow ribbon; for discrete wires, you load them into the slots and press.

The 4-640440-0 mates with any MTA-100 0.100" pitch header — unshrouded or shrouded, straight or right-angle, through-hole or surface-mount — as long as the position count matches.

Frequently asked questions

What mates with 4-640440-0?

Any MTA-100 0.100" pitch header with 10 positions — unshrouded or shrouded, straight or right-angle — from TE Connectivity. The locking ramp on this receptacle snaps onto the header's mating ramp.

Is 4-640440-0 compatible with 22 AWG ribbon cable?

Yes, it accepts 22 AWG discrete wire or ribbon cable via IDC termination. The 0.100" pitch matches standard rainbow ribbon cable spacing.
