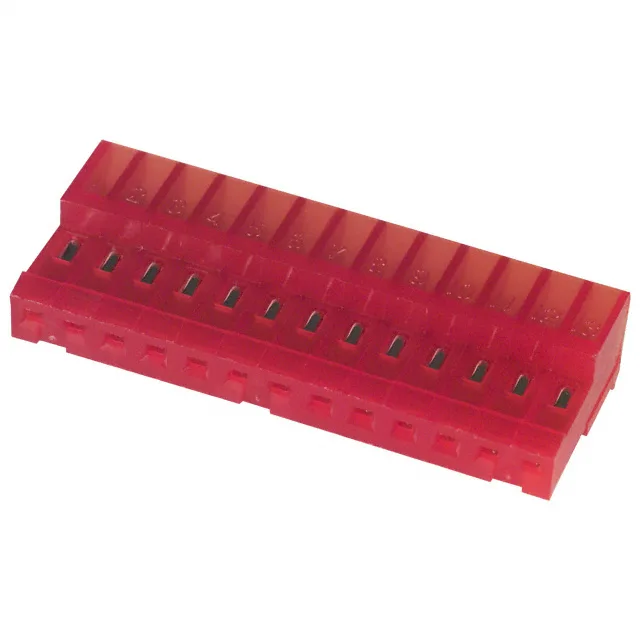

4-640440-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 4-640440-3, 13-Position IDC Receptacle

MPN4-640440-3
Active

TE Connectivity MTA-100 IDC receptacle, 4-640440-3, 13 positions, 1 row, 0.100" (2.54mm) pitch, tin-plated female socket contacts, 22 AWG, locking ramp, free-hanging right-angle mount, bulk.

$2.1800Ref. price · indicative, final on quote
4-640440-3 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-640440-3 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions13
Contact finish thickness80.0µin (2.03µm)

Product details

13-Position IDC Receptacle for 22 AWG Harnesses

The TE Connectivity MTA-100 4-640440-3 is a 13-position IDC receptacle designed for mass-termination of discrete or ribbon cable.

Termination and Wire Handling

The closed-end housing prevents wire over-insertion, which is a common assembly error with open-ended IDC connectors.

This receptacle mounts free-hanging (in-line) and also supports a right-angle cable exit, which helps route the harness flat against the board edge. No polarizing key is required for this part; the closed-end housing and the header's shroud provide the keying. Mates with any standard MTA-100 unshrouded or shrouded header of the same position count and pitch.

Frequently asked questions

What is the mating connector for 4-640440-3?

The locking ramp on the receptacle engages with the header's latch slot for secure retention.

Is 4-640440-3 RoHS compliant?

Yes, the 4-640440-3 is RoHS compliant per TE Connectivity's current declaration.
