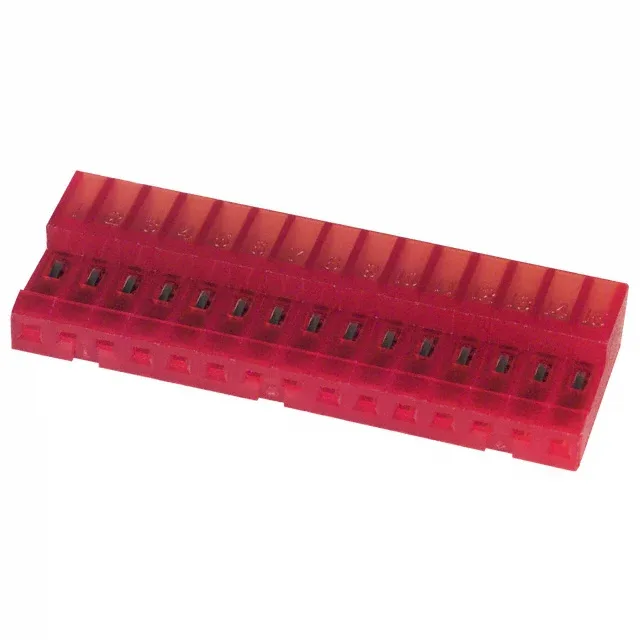

4-640440-5 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE Connectivity 4-640440-5 MTA-100 Receptacle, 15 Pos, IDC

MPN4-640440-5
Active

TE Connectivity MTA-100 receptacle, 4-640440-5, 15 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, tin plating, locking ramp, 22 AWG, free-hanging right-angle, red.

$1.3700Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-640440-5 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions15
Contact finish thickness80.0µin (2.03µm)

Product details

The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint, so the board layout is locked once you pick this series. The closed-end design prevents stubbing on the last position during assembly. The red housing color is part of the MTA-100 visual keying system: red bodies are standard for 22 AWG receptacles, helping line workers and field techs confirm the wire gauge at a glance before termination.

Termination and Mounting — Free-Hanging Right-Angle

This is an IDC connector: strip the cable jacket, fan the wires into the slot, and press down with a hand tool or arbor press. No crimp terminals, no individual wire stripping — the insulation is displaced by the contact tines as they pierce the conductor.

Mates with any standard MTA-100 header (0.100" pitch, square pins).

Frequently asked questions

Is 4-640440-5 RoHS compliant?

Yes, the 4-640440-5 is ROHS3 compliant, meeting the current EU restriction directive.

What is the pitch of 4-640440-5 MTA-100 connector?

The pitch is 0.100" (2.54mm), standard for the MTA-100 series and matching the footprint of any MTA-100 header.
