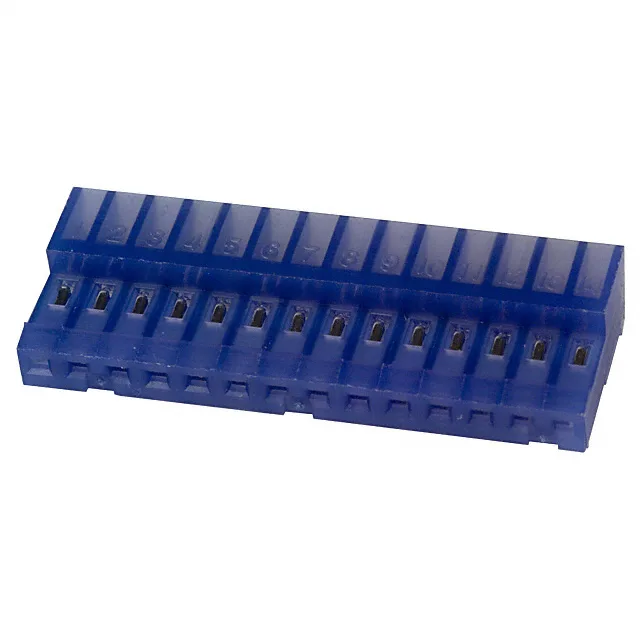

4-640442-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 4-640442-4, 14-Pos IDC Receptacle, 0.100" Pitch

MPN4-640442-4
Active

TE Connectivity MTA-100 IDC receptacle, 4-640442-4, 14 positions, 0.100" (2.54mm) pitch, 1 row, tin-plated contacts, 26 AWG, free-hanging right-angle mount, locking ramp, closed end, bulk.

$2.3400Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-640442-4 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge26 AWG
Cable terminationIDC
ColorBlue
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions14
Contact finish thickness80.0µin (2.03µm)

Product details

The TE Connectivity MTA-100 4-640442-4 is a 14-position IDC receptacle designed for terminating 26 AWG discrete or ribbon cable. The closed-end design prevents stubbing during cable insertion, and the locking ramp fastening type secures the mate against vibration in harness assemblies.

IDC Termination for Harness Assembly

The receptacle accepts both discrete wires and ribbon cable, giving the harness builder flexibility.

Position Count: 14 vs 17 in the Same Series

The closest functional peer in the MTA-100 family is the 1-226733-4, a 17-position receptacle with a detent lock instead of a locking ramp. Both use IDC termination and the same 0.100" pitch, but the 4-640442-4 is a single-row, 14-position part while the 1-226733-4 is a dual-row, 17-position part.

Frequently asked questions

What wire gauge does 4-640442-4 support?

The 4-640442-4 supports 26 AWG wire, both discrete and ribbon cable, terminated via IDC.
