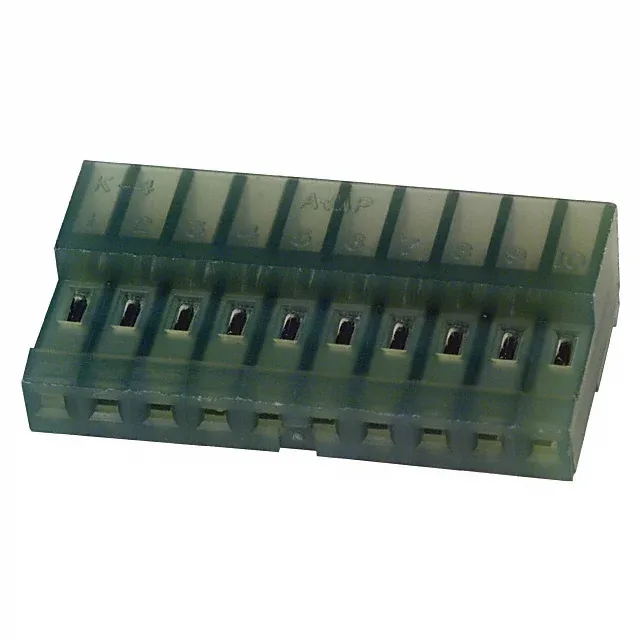

TE Connectivity MTA-100 receptacle, 4-640443-0, 10 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, 28 AWG, tin contacts, locking ramp, free-hanging right-angle, bulk, green.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 28 AWG |
| Cable termination | IDC |
| Color | Green |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 10 |
| Contact finish thickness | 80.0µin (2.03µm) |
The locking ramp holds the pair mated against moderate vibration — think appliance control boards, telecom line cards, or point-of-sale internal harnesses where you want a positive latch without a secondary clip.
The IDC termination presses the 28 AWG wire into the slot without cutting the conductor; the closed end forces the wire fully home. No special tooling beyond the hand-press or bench fixture — the IDC slot geometry does the work.
Submit an RFQ for the quantity and ship-to location.
The pitch is 0.100" (2.54mm), standard for the MTA-100 series. This matches the header footprint and the ribbon cable pitch for IDC termination.
