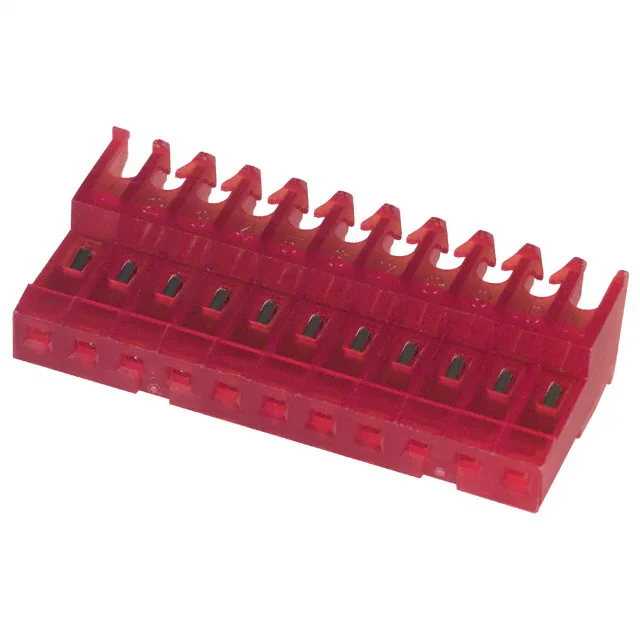

TE Connectivity MTA-100 receptacle, 4-640620-1, 11 positions, 0.100" (2.54mm) pitch, 1 row, IDC termination, tin contacts, free-hanging right-angle, locking ramp, red, bulk.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 22 AWG |
| Cable termination | IDC |
| Color | Red |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Feed Through |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 11 |
| Contact finish thickness | 80.0µin (2.03µm) |
The 0.100" (2.54mm) pitch is the standard MTA-100 footprint, so the board layout matches any MTA-100 header at that spacing.
The 80.0 µin thickness is on the heavy side for tin, which helps with corrosion resistance in indoor environments.
This receptacle mates with any MTA-100 header at 0.100" pitch and matching position count. The locking ramp engages with the header's ramp to provide vibration-resistant retention.
