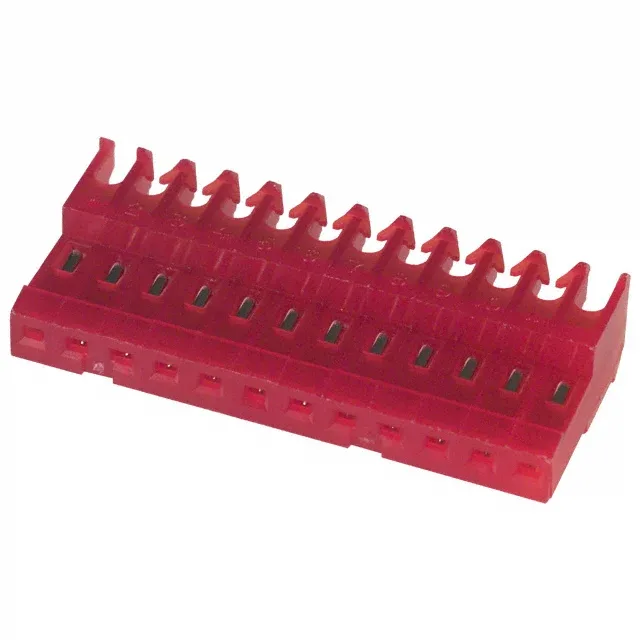

4-640620-2 — TE Connectivity AMP Connectors product photo

TE MTA-100 4-640620-2, 12-Position IDC Receptacle

MPN4-640620-2
Active

TE Connectivity MTA-100 IDC receptacle, 4-640620-2, 12 positions, 0.100" (2.54 mm) pitch, 1 row, tin-plated contacts, locking ramp, free-hanging or right-angle mount, 22 AWG wire, RoHS compliant.

$1.0500Ref. price · indicative, final on quote
StockContact for availability
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.

Specifications

4-640620-2 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesFeed Through
Contact finishTin
Rows1
Positions12
Contact finish thickness80.0µin (2.03µm)

Product details

The housing accepts discrete wires or ribbon cable, and the feed-through feature allows daisy-chaining multiple receptacles on the same wire run.

The housing mounts free-hanging (in-line) or right-angle.

Comparing 4-640620-2 and 4-640620-1

The 4-640620-2 and 4-640620-1 are both 12-position MTA-100 IDC receptacles with the same pitch, termination, and locking ramp. The difference is the housing color: the -2 is red, while the -1 is a different color (typically blue or yellow depending on the variant). No functional spec — current rating, wire gauge, or plating — changes between them. Choose by color-coding preference for your harness.

Frequently asked questions

Can 4-640620-2 be used with 22 AWG wire?

Yes, the 4-640620-2 is specified for 22 AWG wire. The IDC termination accepts discrete or ribbon cable of that gauge.
