TE Connectivity AMP Connectors 4-641190-0 — Panel-Mount & In-Line Circular

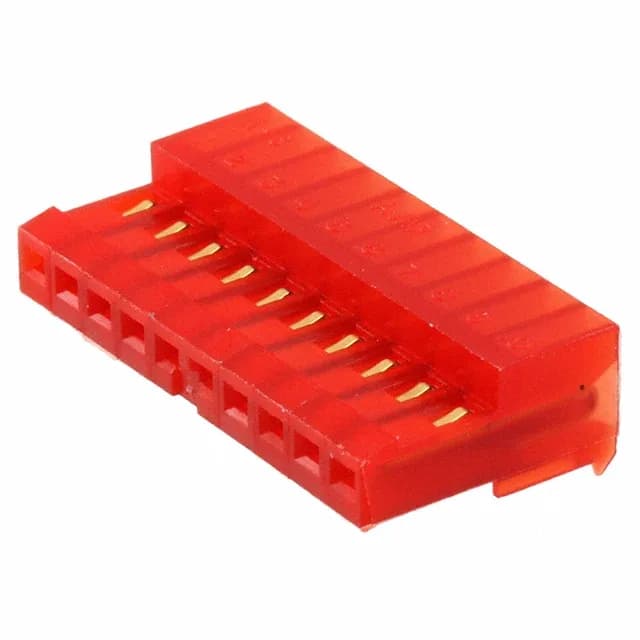

TE 4-641190-0 MTA-100 Receptacle, 10 Pos, IDC, Gold

MPN4-641190-0
Active

TE Connectivity MTA-100 receptacle, 10 positions, 0.100" (2.54mm) pitch, IDC termination, 22 AWG, gold 15.0µin contact finish, locking ramp, red, bulk.

$3.9400Ref. price · indicative, final on quote
TE Connectivity AMP Connectors 4-641190-0 datasheet (PDF)
RoHSRoHS Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

4-641190-0 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishGold
Rows1
Positions10
Contact finish thickness15.0µin (0.38µm)

Product details

10-position IDC receptacle for MTA-100 harness builds

The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint, and the closed-end design prevents over-insertion of the cable.

IDC termination — no crimp, no strip

This eliminates wire stripping and crimping, speeding harness assembly on discrete or ribbon cable.

Gold contacts and locking ramp for field duty

For a harness that routes through a moving panel or sees periodic service, this combination reduces the risk of intermittent contact.

Active lifecycle — no LTB concern

No last-time-buy or end-of-life notice is on record. For a BOM line that needs a stable, long-available connector, this part does not carry obsolescence risk.

Frequently asked questions

Is 4-641190-0 compatible with MTA-100 headers?

Yes. The 0.100" (2.54mm) pitch and locking ramp are standard for the MTA-100 header family. The 10-position receptacle mates with any 10-position MTA-100 header of the same pitch and locking style.

Does 4-641190-0 support 22 AWG wire only?

The IDC termination is specified for 22 AWG discrete or ribbon cable. Using a different wire gauge may not achieve reliable insulation displacement or conductor grip.

Where can I buy 4-641190-0 available via RFQ confirmation?

This part is sourced to order; availability and pricing are confirmed at quote time.
