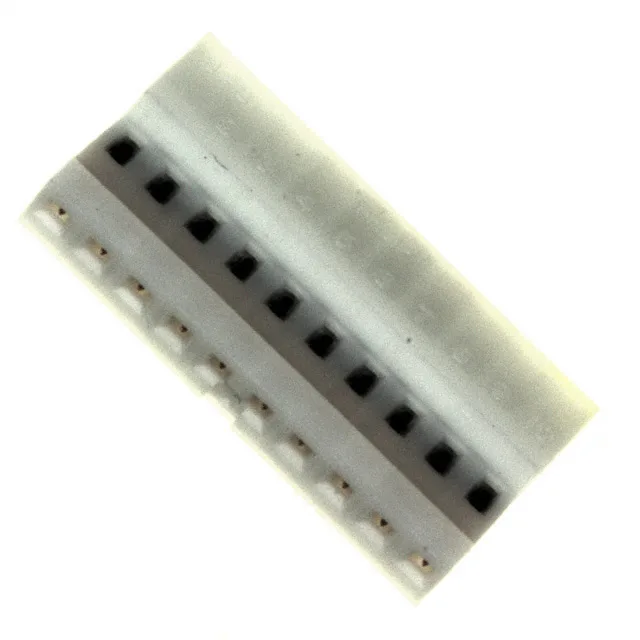

TE Connectivity MTA-100 receptacle, 4-641191-0, 10 positions, 0.100" (2.54mm) pitch, 1 row, IDC termination, gold contact finish, free-hanging right-angle mounting, locking ramp.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 24 AWG |
| Cable termination | IDC |
| Color | White |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 10 |
| Contact finish thickness | 15.0µin (0.38µm) |
The white housing with a closed end and locking ramp mates with the corresponding MTA-100 pin header and locks against vibration without a secondary latch.
This is a one-step assembly process with a hand tool or press, and the closed end means the wire stops at a fixed depth — no risk of over-insertion.
Yes, the 4-641191-0 is RoHS Compliant per the manufacturer's listing.
The locking ramp on the receptacle engages the ramp on the header to secure the pair.
The 4-641191-0 accepts 24 AWG discrete or ribbon cable for IDC termination.
