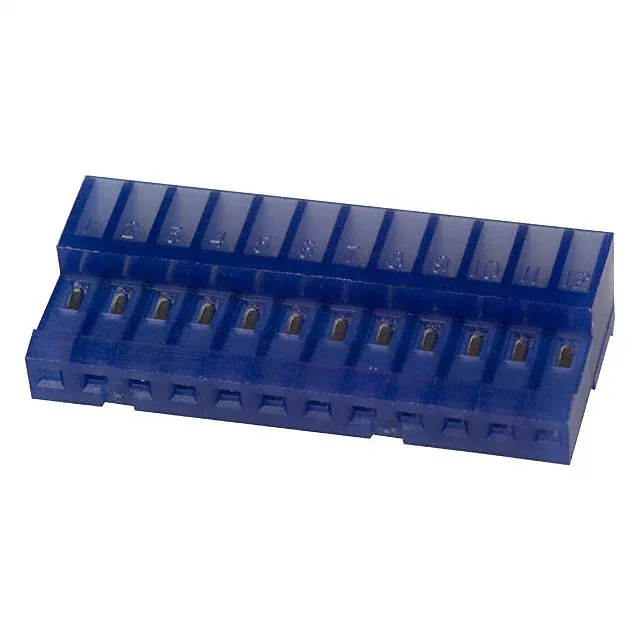

TE Connectivity MTA-100 IDC receptacle, 4-641192-2, 12 positions, 0.100" (2.54mm) pitch, 1 row, gold-plated contacts, locking ramp, free-hanging right-angle mount.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Type | Female Socket |
| Mounting | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 26 AWG |
| Cable termination | IDC |
| Color | Blue |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Gold |
| Rows | 1 |
| Positions | 12 |
| Contact finish thickness | 15.0µin (0.38µm) |
This receptacle terminates 26 AWG wire via IDC — no stripping or crimping per wire, which saves labor on multi-conductor harnesses. The closed-end feature blocks the last position, preventing accidental insertion of an extra wire or terminal.
Yes, 4-641192-2 is RoHS Compliant per the manufacturer's listing.
4-641192-2 terminates 26 AWG discrete or ribbon cable via IDC.
