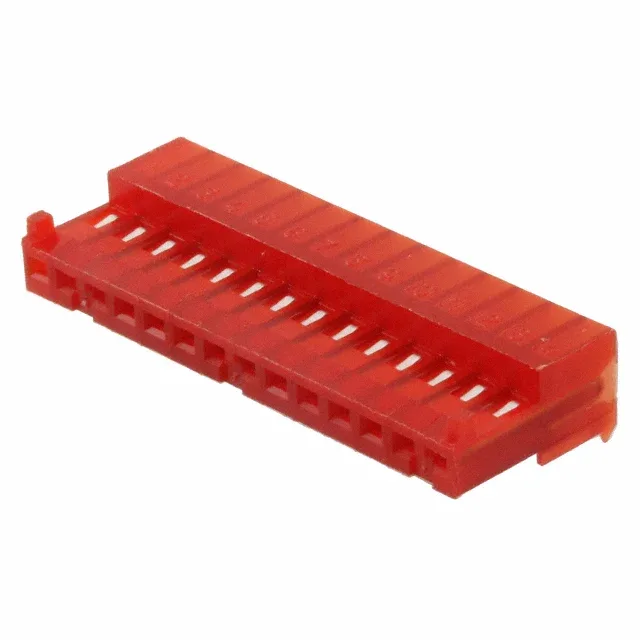

4-643813-4 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 4-643813-4 Receptacle, 14 Pos, IDC, 0.100" Pitch

MPN4-643813-4
Active

TE Connectivity MTA-100, 4-643813-4, 14 Position, 1 Row, 0.100" (2.54mm) Pitch, Receptacle, IDC, Tin, Free Hanging, Right Angle.

$1.9800Ref. price · indicative, final on quote
4-643813-4 datasheet
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-643813-4 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions14
Contact finish thickness80.0µin (2.03µm)

Product details

What This 14-Position MTA-100 Receptacle Does

The closed-end design blocks the last position, preventing a header pin from pushing through the receptacle body in a daisy-chain run.

Mating and Cable Termination

The IDC termination accepts 22 AWG wire; the cable can be discrete conductors or ribbon cable, giving the harness builder flexibility to use either without changing the connector. The free-hanging, right-angle cable exit routes the wire parallel to the board or panel, saving vertical space in tight enclosures.

Frequently asked questions

Is 4-643813-4 compatible with MTA-100 headers?

Yes.

Can I use 4-643813-4 for both discrete and ribbon cable?

Yes. The 4-643813-4 is specified for both discrete or ribbon cable, terminated via IDC to 22 AWG wire. The same connector works for either cable type without modification.
