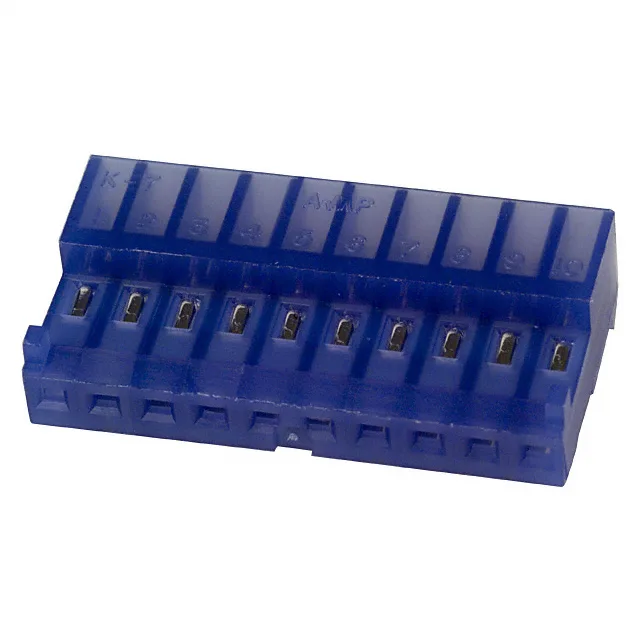

4-643815-0 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 4-643815-0, 10-Pin IDC Receptacle, 0.100" Pitch

MPN4-643815-0
Active

TE Connectivity MTA-100 IDC receptacle, 4-643815-0, 10 positions, 1 row, 0.100" (2.54mm) pitch, tin-plated female socket contacts, locking ramp, free-hanging right-angle, 26 AWG, RoHS.

$0.8200Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-643815-0 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge26 AWG
Cable terminationIDC
ColorBlue
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions10
Contact finish thickness80.0µin (2.03µm)

Product details

10-Position IDC Receptacle for Discrete or Ribbon Cable

It uses female socket contacts with a thick 80.0µin (2.03µm) tin finish, terminated via IDC to 26 AWG wire.

Locking Ramp and Closed-End Housing

The closed-end feature blocks the last cavity, preventing reverse insertion of the cable and ensuring the wire stop aligns with the contact beam. This is a single-row, 10-position housing in blue, bulk packaged for hand-loading into harness fixtures.

Mounting and Cable Termination

Free-hanging (in-line) mounting with a right-angle cable exit — the IDC termination pierces the 26 AWG insulation in one press operation, no stripping or crimping required.

Frequently asked questions

Is 4-643815-0 RoHS compliant?

Yes, the 4-643815-0 is RoHS compliant per the current directive.

Is the 4-643815-0 a male or female connector?

The 4-643815-0 is a female receptacle with female socket contacts, designed to mate with a male header.
