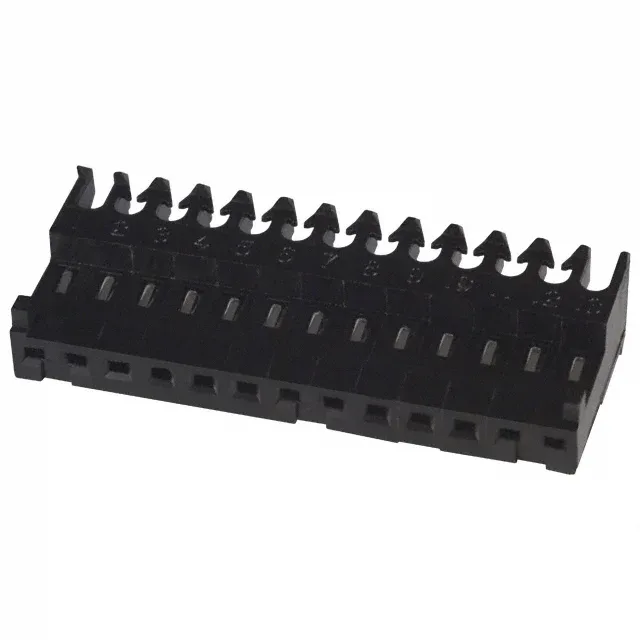

TE Connectivity MTA-100 receptacle, 4-644083-3, 13 positions, 1 row, 0.100" (2.54mm) pitch, IDC termination, tin 80.0µin, free-hanging right-angle, locking ramp.
| Parameter | Value |
|---|---|
| Series | MTA-100 |
| Wire type | Discrete or Ribbon Cable |
| Gender | Female Socket |
| Mounting type | Free Hanging (In-Line), Right Angle |
| Connector type | Receptacle |
| Fastening type | Locking Ramp |
| Wire gauge | 22 AWG |
| Cable termination | IDC |
| Color | Black |
| Pitch | 0.100\" (2.54mm) |
| Package | Bulk |
| Features | Closed End |
| Contact finish | Tin |
| Rows | 1 |
| Positions | 13 |
| Contact finish thickness | 80.0µin (2.03µm) |
The TE Connectivity MTA-100 4-644083-3 is a 13-circuit, single-row receptacle that terminates 22 AWG discrete or ribbon cable via IDC (Insulation Displacement Contact).
This is an IDC-only receptacle — no crimp, no solder. The 22 AWG wire gauge is fixed by the IDC slot geometry; the connector accepts either discrete wires or ribbon cable, but the wire size is not negotiable.
Yes, the IDC slot is sized for 22 AWG wire only. It accepts discrete or ribbon cable of that gauge, but no other wire size is supported.
The pitch is 0.100" (2.54mm), standard for the MTA-100 series. This matches the footprint of the mating header.
This part is active and sourced to order.
