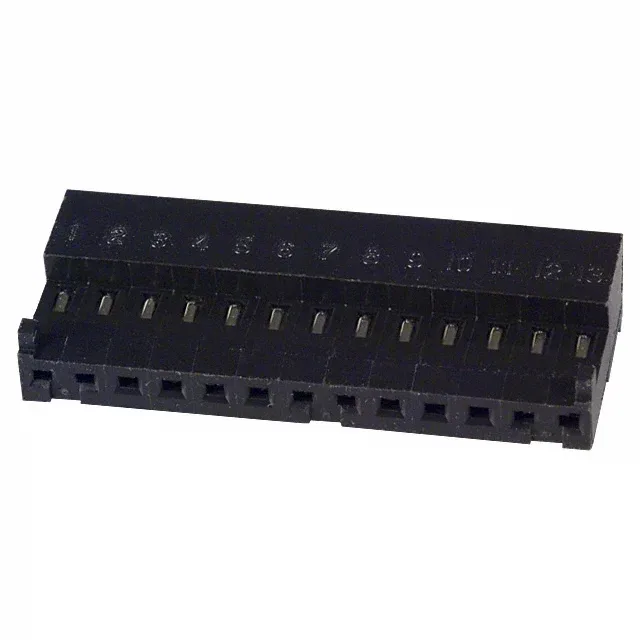

4-644312-3 — TE Connectivity AMP Connectors product photo
TE Connectivity AMP Connectors

TE MTA-100 4-644312-3, 13 Pos IDC Receptacle, 0.100" Pitch

MPN4-644312-3
Active

TE Connectivity MTA-100 receptacle, 4-644312-3, 13 positions, 0.100" (2.54mm) pitch, 1 row, IDC termination, tin contacts, locking ramp, black, bulk.

$1.0000Ref. price · indicative, final on quote
StockContact for availability
Lead timeIn Stock wk
MOQ1 pcs
  • New & original stockTraceable channels only — no mixed lots, no re-taped reels.
  • Factory packaging where availableSealed reels, trays and bags; cut quantities always stated on the quote.
  • Photo-verified countsEvery line counted and photographed before the box closes.
  • PayPal buyer protectionPay by T/T, PayPal or Payoneer — card payments covered end to end.
How we verify every order →

Specifications

4-644312-3 Technical Specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
GenderFemale Socket
Mounting typeFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge24 AWG
Cable terminationIDC
ColorBlack
Pitch0.100\" (2.54mm)
PackageBulk
FeaturesClosed End
Contact finishTin
Rows1
Positions13
Contact finish thickness80.0µin (2.03µm)

Product details

The TE Connectivity MTA-100 4-644312-3 is a 13-position IDC receptacle built for discrete or ribbon cable termination. It sits in the MTA-100 family at the standard 0.100" (2.54mm) pitch, which mates directly with the matching MTA-100 pin headers. The closed-end design blocks wire push-through on the last cavity — a detail that matters when you're terminating a ribbon and don't want a stray strand poking out the far side.

Termination and wire gauge

This is a one-step IDC termination for 24 AWG wire — the insulation is displaced as the cover is pressed down, no stripping required.

Locking ramp and retention

In a panel or harness that sees vibration — say, inside an industrial cabinet near a motor drive — that ramp keeps the pair from walking apart.

Frequently asked questions

Does 4-644312-3 have a locking ramp?

Yes, the 4-644312-3 receptacle includes a locking ramp on the housing for positive retention with the mating header latch.

What is the pitch of 4-644312-3?

The pitch is 0.100" (2.54mm), standard for the MTA-100 series, matching the full range of MTA-100 headers.
