TE Connectivity AMP Connectors 4-644511-3 — Panel-Mount & In-Line Circular

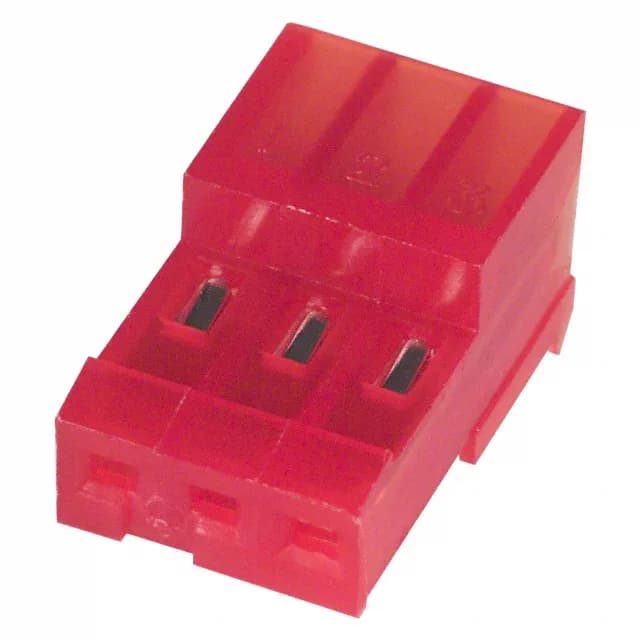

TE MTA-100 4-644511-3, 3-Position IDC Receptacle

MPN4-644511-3
Active

TE Connectivity MTA-100 receptacle, 4-644511-3, 3 positions, 0.100" (2.54 mm) pitch, 1 row, IDC termination, tin contacts, 22 AWG, free-hanging right-angle, locking ramp.

$0.3300Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent supplier — new & surplus connector stock· Listing updated Aug 2026

Specifications

4-644511-3 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesClosed End
Contact finishTin
Rows1
Positions3
Contact finish thickness80.0µin (2.03µm)

Product details

3-Position IDC Receptacle for MTA-100 Harness Builds

The TE Connectivity MTA-100 4-644511-3 is a 3-position, single-row IDC receptacle designed for mass-terminating 22 AWG discrete or ribbon cable without stripping or crimping.

The 4-644511-3 mates with any MTA-100 0.100" pitch header of the same 3-position count — typically the unshrouded vertical or right-angle pin headers from the same series. Build-to-print: the full assembly BOM needs the receptacle, the mating header, and the 22 AWG wire; no separate contacts are required since IDC integrates the termination into the housing.

For reel quantities or scheduled releases, availability is confirmed at quote time.

Frequently asked questions

What is the mating connector for 4-644511-3?

The 4-644511-3 mates with any MTA-100 0.100" pitch header of the same 3-position count, such as the unshrouded vertical pin header. The locking ramp on the receptacle engages the latch on the header for vibration-resistant retention.
