TE Connectivity AMP Connectors 4-644511-9 — Panel-Mount & In-Line Circular

TE MTA-100 4-644511-9, 9-Pos IDC Receptacle, 0.100" Pitch

MPN4-644511-9
Active

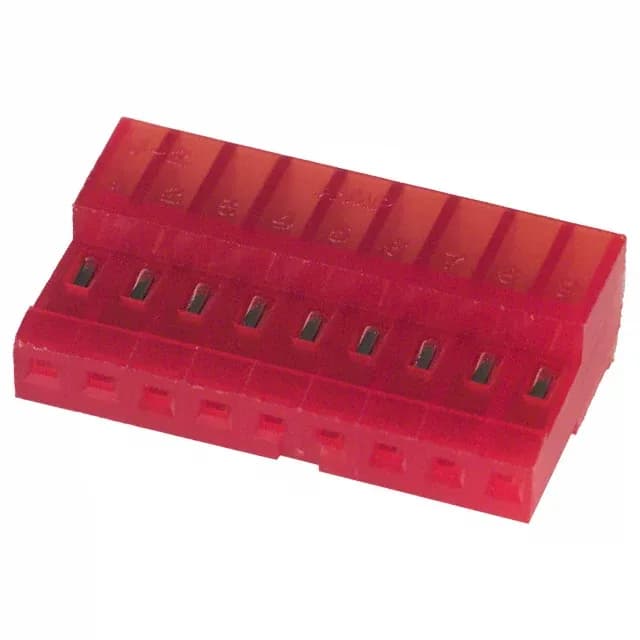

TE Connectivity MTA-100, Receptacle, 9 Positions, 0.100" (2.54mm) Pitch, 1 Row, IDC Termination, Tin Contact Finish, Free Hanging Right Angle, Locking Ramp, Red.

$0.5978Ref. price · indicative, final on quote
RoHSROHS3 Compliant
SeriesMTA-100
Source DocumentedChannel stated on listing & quote
Condition PhotosReal unit photos / video on request
WhatsApp AnswersFast human replies for stock & sourcing questions
Worldwide DispatchDHL/FedEx — transit quoted per order
Independent China distributor & sourcing agent· Listing updated Aug 2026

Specifications

4-644511-9 specifications
ParameterValue
SeriesMTA-100
Wire typeDiscrete or Ribbon Cable
TypeFemale Socket
MountingFree Hanging (In-Line), Right Angle
Connector typeReceptacle
Fastening typeLocking Ramp
Wire gauge22 AWG
Cable terminationIDC
ColorRed
Pitch0.100\" (2.54mm)
PackageTape & Reel (TR) Cut Tape (CT)
FeaturesClosed End
Contact finishTin
Rows1
Positions9
Contact finish thickness80.0µin (2.03µm)

Product details

9-Position IDC Receptacle for MTA-100 Harness Builds

The 0.100" (2.54mm) pitch matches the standard MTA-100 header footprint, so the board layout is fixed once you pick the series. The red housing gives a visual cue on the line for color-coded harness routing.

How It Feeds the Line

For a high-volume build, the reel packaging and single-row layout keep the line moving without a manual loading step.

No crimp tool needed, but a hand or pneumatic IDC press is required for consistent insertion force across all 9 positions. The closed-end feature means the housing has a back wall — wire stops at the far end, so insertion depth is self-limiting.

Frequently asked questions

What wire gauge does 4-644511-9 accept?

The 4-644511-9 is rated for 22 AWG wire, either discrete or ribbon cable, terminated via IDC.

Is 4-644511-9 compatible with MTA-100 headers?

Yes, the 4-644511-9 mates with any standard MTA-100 header at 0.100" (2.54mm) pitch. The locking ramp on the receptacle engages the header's latch ramp for secure retention.
